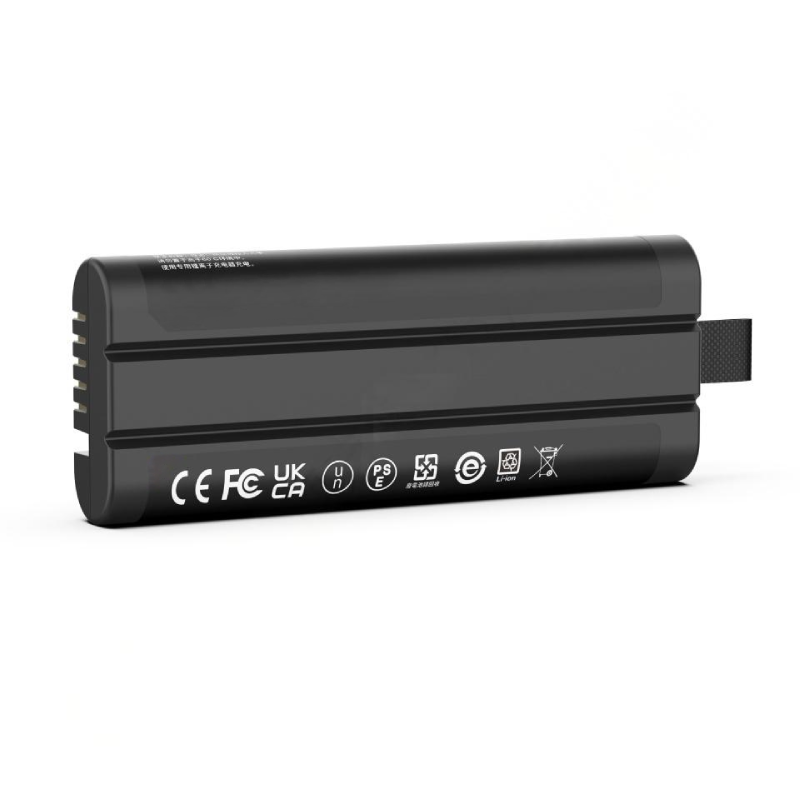

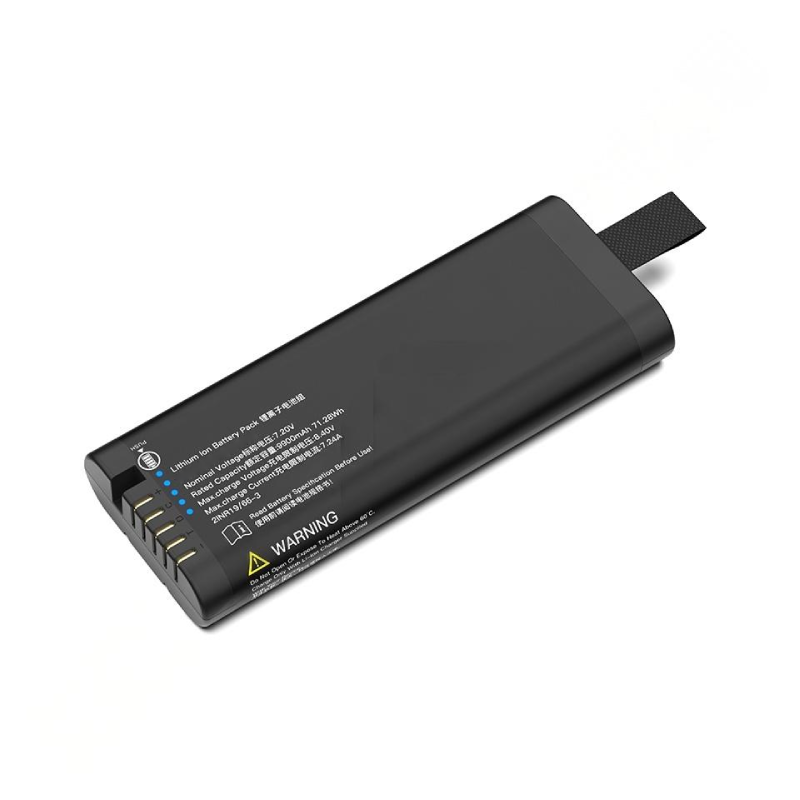

Medical device lithium ion battery 7.2V 9900mAh Li-ion Medical standard intelligent battery

Product Specifications

Rated Capacity: 9900mAh

Rated Voltage: 7.2V

Energy:10350mWh

Battery type:lithium ion

Internal resistance: < 200mΩ @1kHz at 25℃

Maximum charging current: 8.0A

Maximum charging voltage: 8.4V（recommend）

Maximum discharging current: 8.0A

Cycle life: 500 cycles ≥ 80% capacity

(Test standard: CC/CV charge: 4.5A/8.4V; CC discharge:1.98A to 5.0V@25℃ )

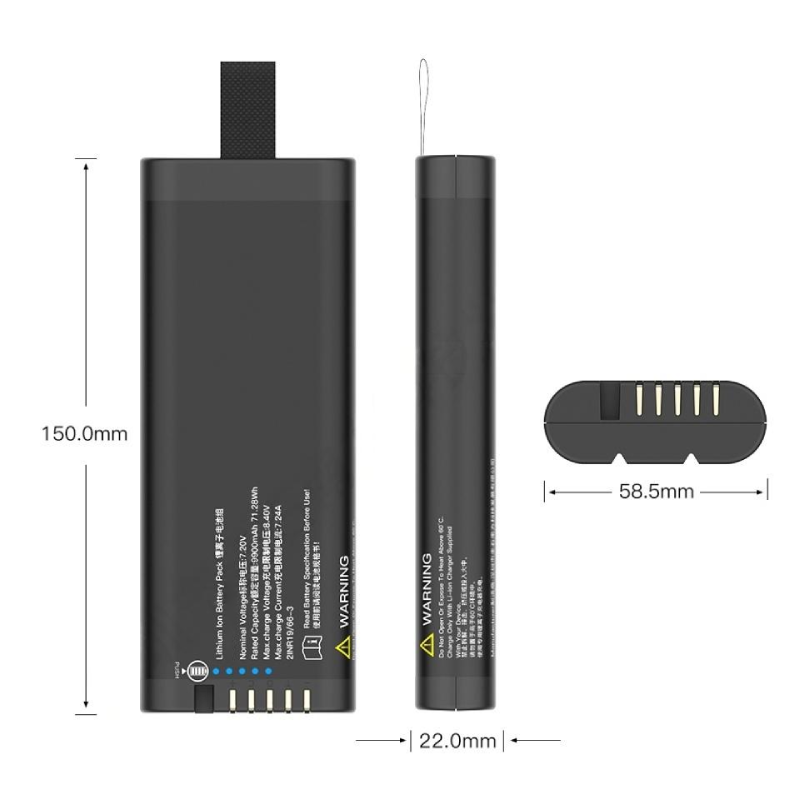

Product Dimensions : 150.0±0.3*58.5±0.3*22.0±0.3mm

Weight: 336g±10g

Charging Temperature Range: 0~50°C

Discharge Temperature Range: -20~60°C

Features

Complies with regulations in multiple regions worldwide;

High energy density and stability using branded batteries;

Standard SMBus V1.1 interface;

Comprehensive safety protection features;

Tl accurate power calculation.

Comprehensive safety protection functions, such as overcharge, overdischarge, overcurrent, overtemperature, short circuit, etc.

Applications

Class III medical devices;

 Precision measuring instruments;

Industrial computers;

Non-destructive testing equipment;

Portable industrial and medical devices.
