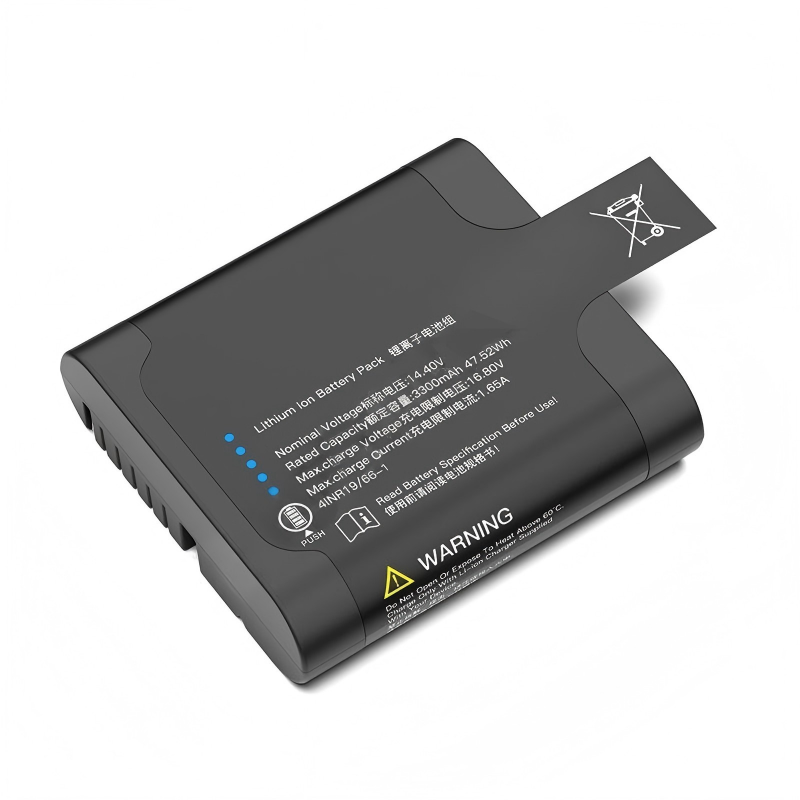

Medical standard lithium ion battery 14.4V 3300mAh Li-ion battery Pack for Medical equipment

Product Specifications

Rated Capacity: 3300mAh

Nominal capacity:3450mAh

Rated Voltage: 14.4V

Battery type:lithium ion

Internal resistance: < 250mΩ @1kHz at 25℃

Maximum charging current: 1.65A

Maximum charging voltage: 16.8V

Maximum discharging current: 4.0A

Cycle life: 500 cycles with capacity ≥ 80% of rated capacity

(Testing standard: CC/CV charging: 1.65A/16.8V; CC discharging: 0.66A to 10.0V@25℃)

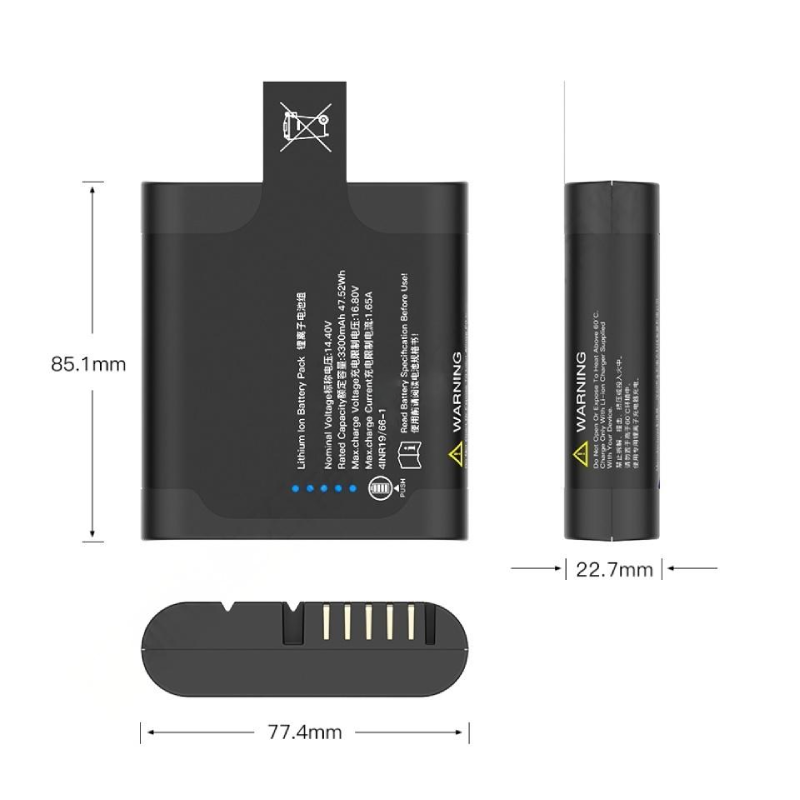

Product Dimensions : 85.1±0.3*77.4±0.3*22.7±0.3mm

Weight: 235g±10g

Storage Temperature Range-20~50℃(MAX.)/-20~25℃(Recommend)

Charging Temperature Range: 0~50°C

Discharge Temperature Range: -20~60°C

Features

 4S1P removable lithium-ion battery pack;

Complies with regulations in multiple regions worldwide;

Standard SMBus V1.1 interface;

Integrated LED State of Charge (SOC) indicator;

Meets JEITA charging optimization rules;

Comprehensive safety protection features, such as overcharge, over-discharge, overcurrent, over-temperature, and short circuit protection;

Equalization function to effectively improve battery life;

TI precise power calculation.

Applications

Class III medical devices;

 Precision measuring instruments;

Industrial computers;

Non-destructive testing equipment;

Portable industrial and medical devices.
