Medical standard lithium ion battery 14.4V 6600mAh Li-ion battery Pack for Medical device battery

Product Specifications

Rated Capacity: 6600mAh

Nominal capacity:6900mAh

Rated Voltage: 14.4V

Battery type:lithium ion

Internal resistance: < 150mΩ @1kHz at 25℃

Maximum charging current: 4.83A

Maximum charging voltage: 16.8V

Maximum discharging current: 15.0A

Cycle life: 500 cycles with 100% duty cycle ≥ 80% of rated capacity

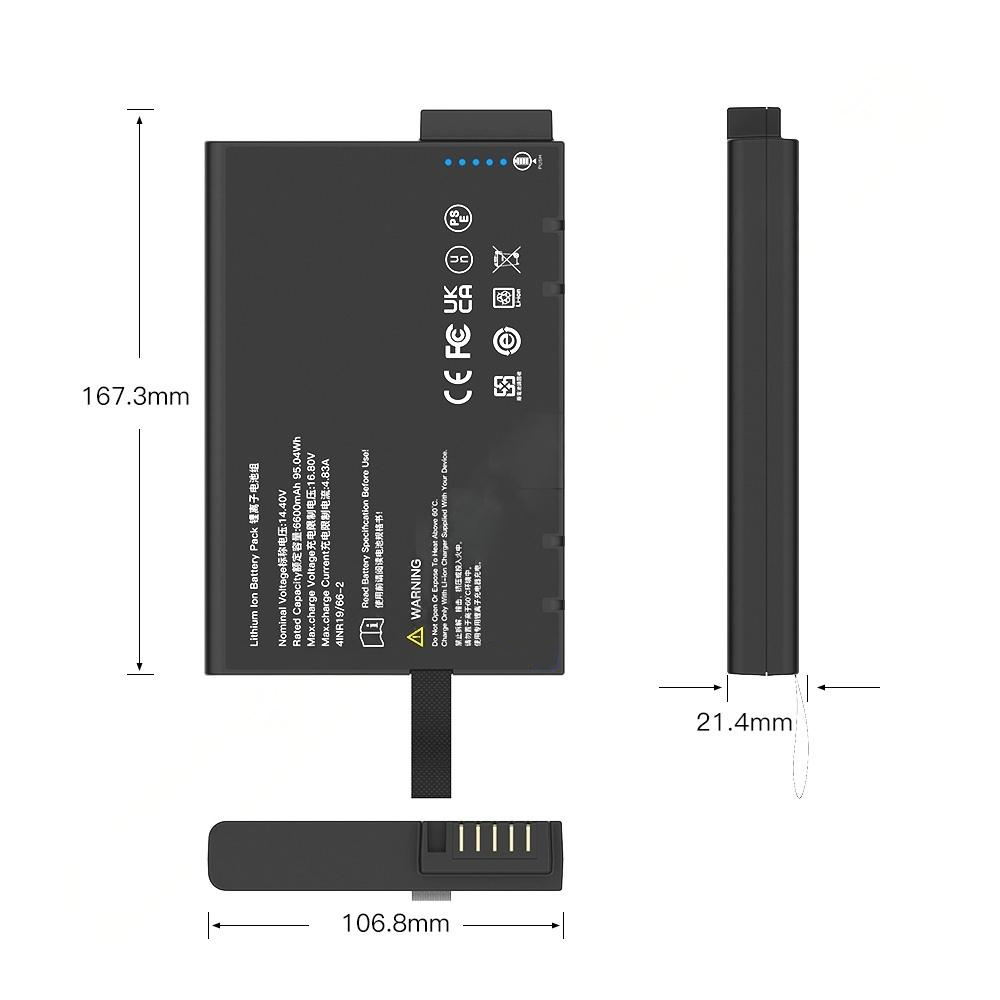

Product Dimensions : 167.3±0.3*106.8±0.3*21.4±0.3mm

Weight: 500g±10g

Storage Temperature Range-20~50℃(MAX.)/-20~25℃(Recommend)

Charging Temperature Range: 0~50°C

Discharge Temperature Range: -20~60°C

Features

200W high-power discharge

 4S2P removable lithium-ion battery pack;

Complies with regulations in multiple regions worldwide;

Standard SMBus V1.1 interface;

Integrated LED State of Charge (SOC) indicator;

Meets JEITA charging optimization rules;

Comprehensive safety protection features, such as overcharge, over-discharge, overcurrent, over-temperature, and short circuit protection;

Equalization function to effectively improve battery life;

TI precise power calculation.

Applications

Class III medical devices;

 Precision measuring instruments;

Industrial computers;

Non-destructive testing equipment;

Portable industrial and medical devices.
