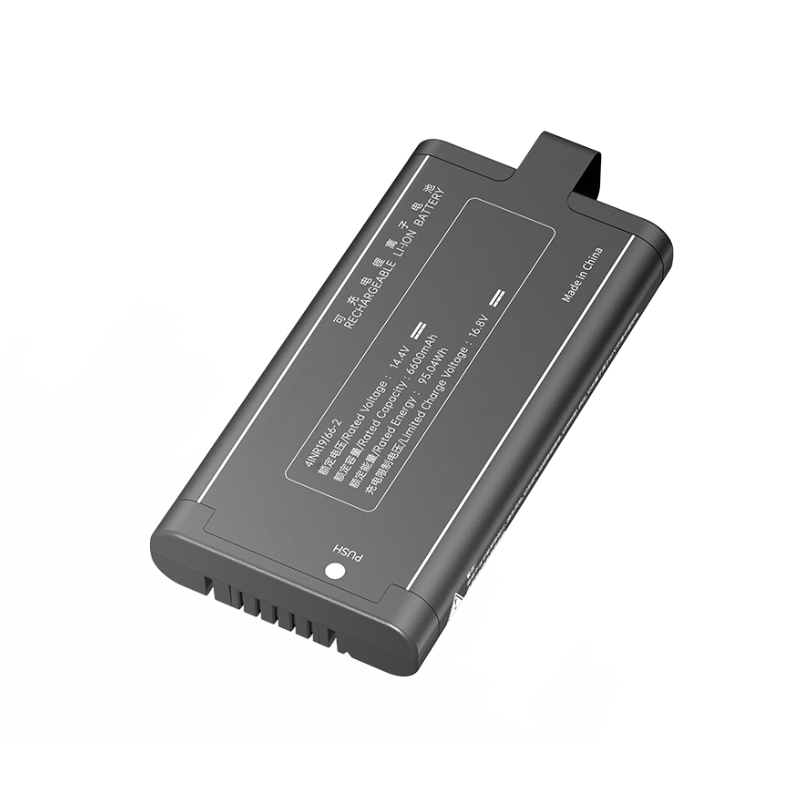

Medical device lithium ion battery 14.4V 6600mAh Li-ion Medical standard intelligent battery

Product Specifications

Rated Capacity: 6600mAh

Rated Voltage: 14.4V

Energy:95.04Wh

Battery type:lithium ion

Internal resistance: < 200mΩ @1kHz at 25℃

Maximum charging current: 3A

Maximum charging voltage: 16.8V（recommend）

Maximum discharging current: 8.5A

Cycle life: 500 cycles ≥ 70% capacity

(Test standard: CC/CV charge: 3.3A/16.8V; CC discharge: 6.6A )

Product Dimensions : 150.4±0.25*77.4±0.2*22.4±0.2mm

Weight: 470g±5g

Charging Temperature Range: 0~45°C

Discharge Temperature Range: -20~60°C

Features

Complies with regulations in multiple regions worldwide;

High energy density and stability using branded batteries;

Standard SMBus V1.1 interface;

4 LED power status indicators ;

Comprehensive safety protection features;

Tl accurate power calculation.

Applications

Class III medical devices;

 Precision measuring instruments;

Industrial computers;

Non-destructive testing equipment;

Portable industrial and medical devices.
