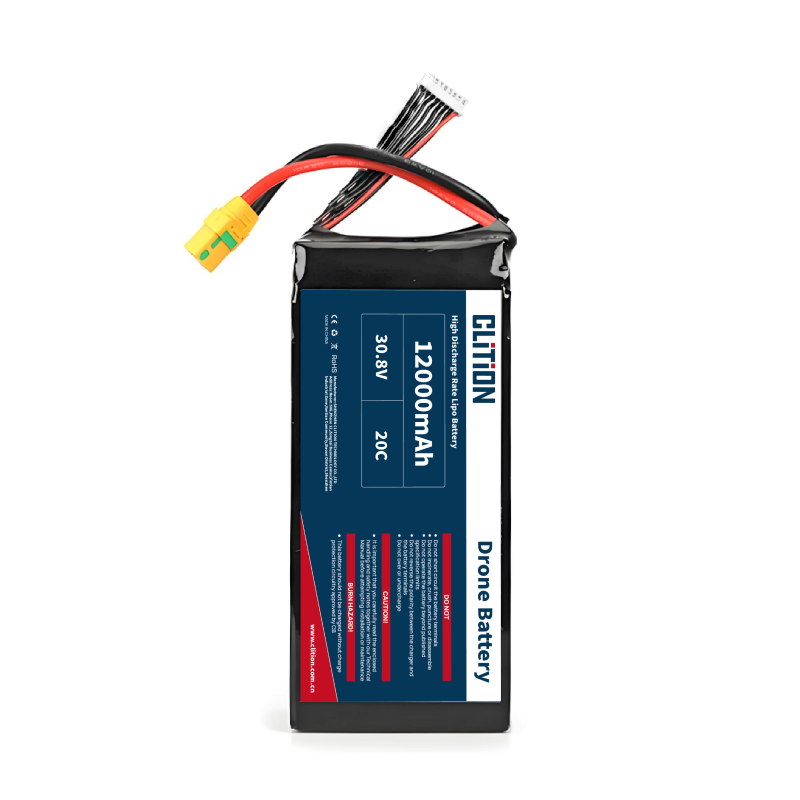

12000mAh Li-Po Drone Battery Pouch Lithium Battery 30.8V 8S1P 20C Discharge Rate

Product Specifications

Nominal Capacity: 12000mAh

Nominal Voltage: 30.8V (8S1P)

Battery pack internal resistance：≤20mΩ（23±2℃）AC 1KHz

Discharge Rate: 20C

Charge Limit Voltage: 35.2V

Discharge End Voltage: 24.0V

Charge Cutoff Current: 0.02 CA

Cycle life：≥300 times

Discharge Cable Length: 150 ± 10mm (excluding plug)

Charge Cable Length: 80 ± 10mm (excluding plug)

Discharge Plug: XT90

Dimensions (T*W*L): 73*75.5*185mm

Weight: 2300g

Charging Temperature Range: 0~45°C

Discharge Temperature Range: -10~60°C

Customizable Form Factor

Flexible pack configuration (e.g., 4S–12S or customized voltage levels)

Custom dimensions to fit internal drone compartments

Multiple connector options (XT60, XT90, AS150, or custom connectors)

Intelligent Battery Management System (BMS)

Built-in smart BMS provides:

Over-charge protection

Over-discharge protection

Over-current and short-circuit protection

Cell balancing and temperature monitoring

Optional communication protocols (CAN, UART, SMBus, Bluetooth) for real-time battery data
