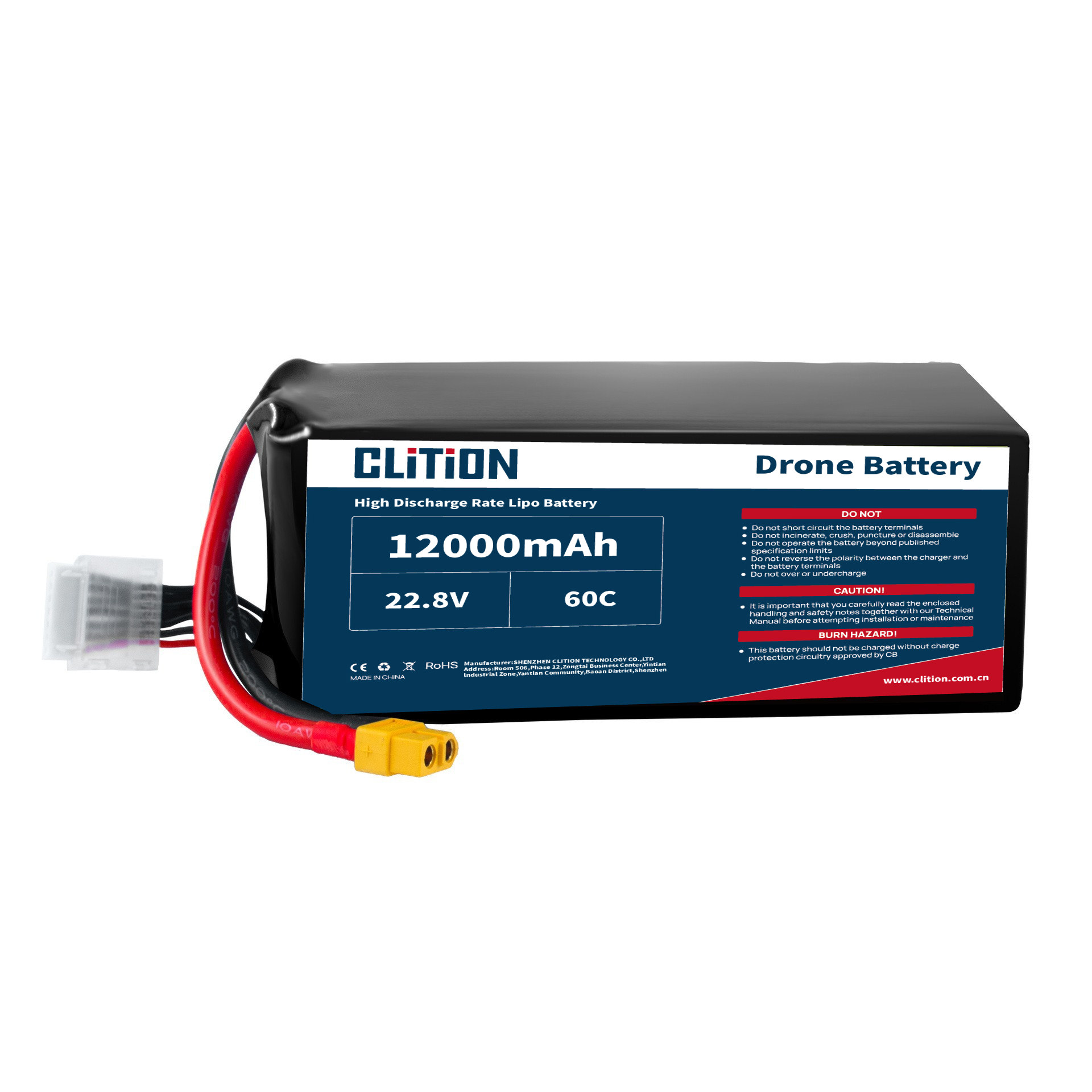

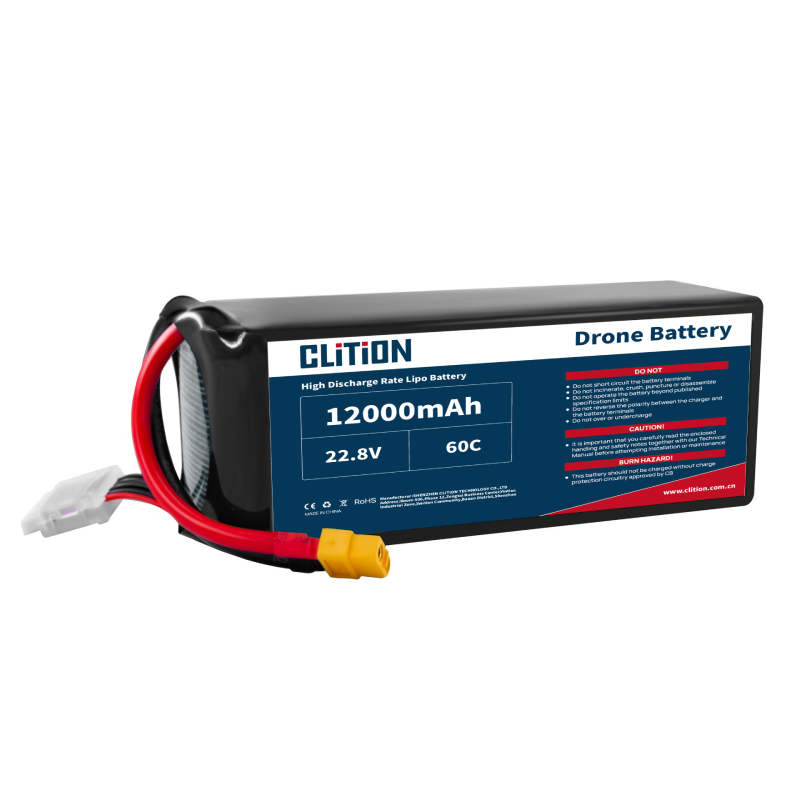

Drone Battery Pack 60C 12000mAh 22.8V Pouch Lithium Battery 8S1P High Rate Discharge Grade A Li-Po battery cell

Product Specifications

Nominal Capacity: 12000mAh

Nominal Voltage: 22.8V (6S1P)

Battery type:lithium polymer battery

Discharge Rate: 60C

Charge  Voltage: 26.1V

Discharge  Voltage: 3.6-4.35V

Max. continuous discharge current: 200A

Max. continuous charge current:200A

Discharge current:200A

 Charge current:12A

Cycle life：≥600 times

Discharge Plug: XT90-S

Product Dimensions : 73*74*174mm

Out packing size:83*84*183mm

Weight: 1297g

Storage Temperature Range:0~25℃

Charging Temperature Range: -10~45°C

Discharge Temperature Range: -20~65°C

Customized Service: Drone Battery

We provide flexible customization to meet the unique power demands of drones for different applications:

Custom Specifications:

Adjustable voltage and capacity to match flight time and payload requirements.

Selection of battery chemistry (high-energy-density Li-ion or high-discharge-rate LiPo).

Custom discharge rate (C-rating) for standard or high-performance drones.

Design & Configuration:

Tailored battery shape and size to fit compact drone frames.

Custom connector types, cable lengths, and balancing leads.

Optional smart BMS with real-time monitoring for voltage, temperature, and cycles.

Branding & Packaging:

OEM/ODM services with custom labeling and logo printing.

Packaging designed to meet your brand and shipping standards.

Technical & After-Sales Support:

Engineering support for power system matching and flight optimization.

After-sales services including performance testing and troubleshooting guidance.
