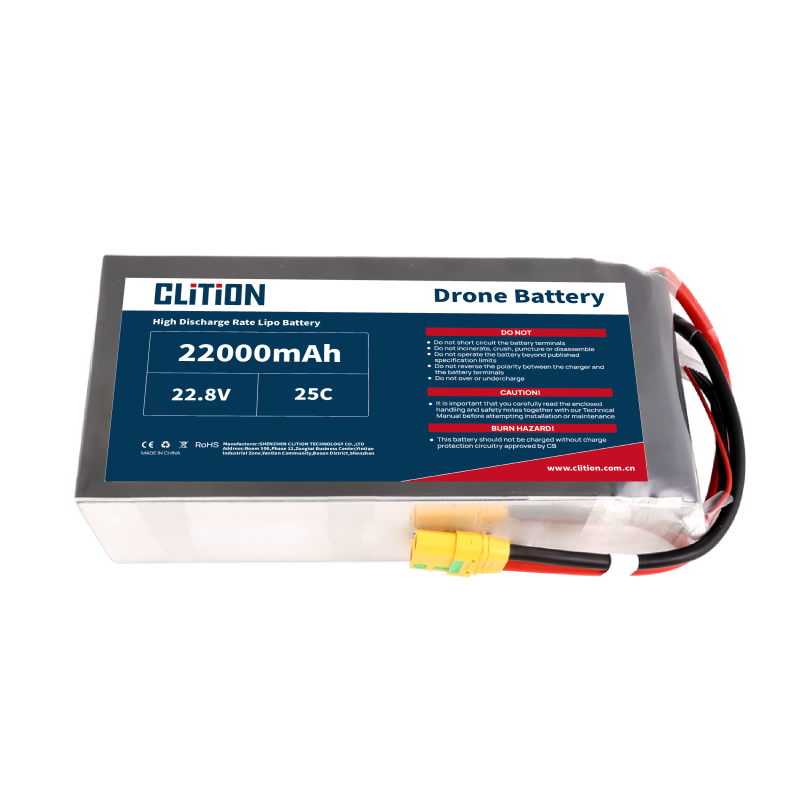

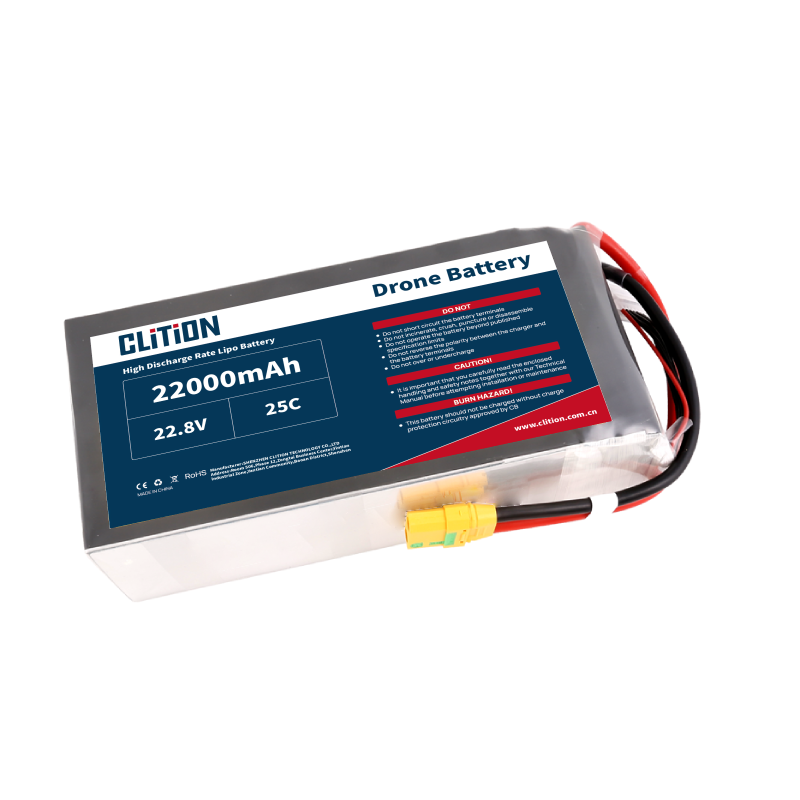

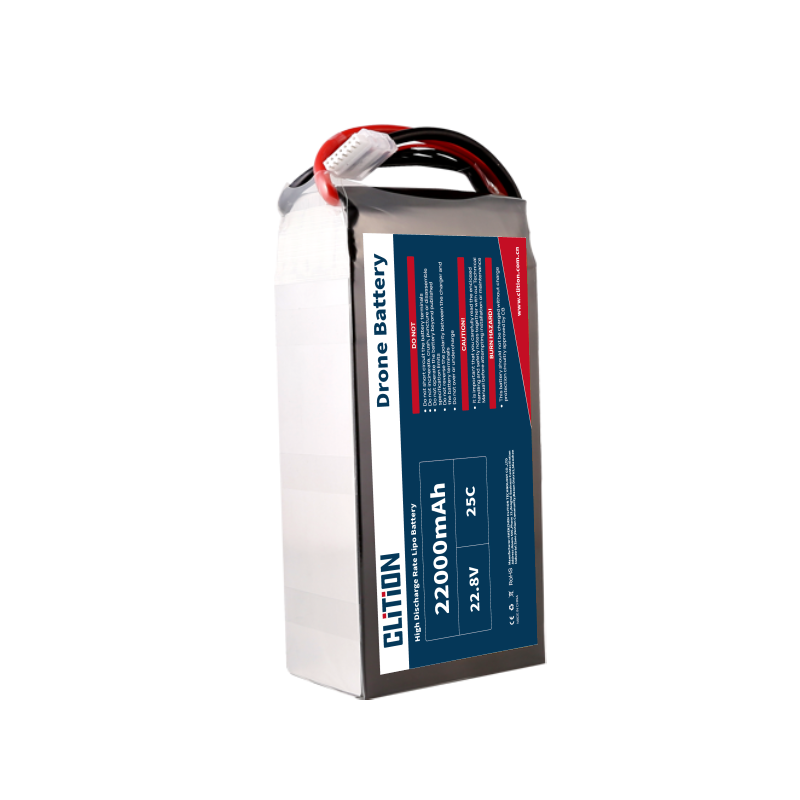

Drone Battery Pack 25C 22000mAh 22.8V Pouch Lithium Battery 6S1P Grade A Li-Po battery cell

Product Specifications

Nominal Capacity: 22000mAh

Nominal Voltage: 22.8V (6S1P)

Battery type:lithium polymer battery

Discharge Rate: 25C

Discharge cut-off  Voltage: 19.2V

Max. continuous discharge current: 4400mA(0.2C);-20~0℃

Max. continuous discharge current: 11000mA(0.5C);-0~10℃/45~60℃

Max. continuous discharge current: 60000mA(2.73C); 10~45℃

Discharge current:200A

 Charge current:12A

Cycle life：≥600 times

Discharge Plug: XT90-S

Product Dimensions  Max.(H*W*H): 66.5*98*207mm

Weight:2400g±120g

Storage Temperature Range:-10~45℃

Charging Temperature Range: -10~45°C

Discharge Temperature Range: -20~65°C

Customized Service: Drone Battery

We provide flexible customization to meet the unique power demands of drones for different applications:

Custom Specifications:

Adjustable voltage and capacity to match flight time and payload requirements.

Selection of battery chemistry (high-energy-density Li-ion or high-discharge-rate LiPo).

Custom discharge rate (C-rating) for standard or high-performance drones.

Design & Configuration:

Tailored battery shape and size to fit compact drone frames.

Custom connector types, cable lengths, and balancing leads.

Optional smart BMS with real-time monitoring for voltage, temperature, and cycles.

Branding & Packaging:

OEM/ODM services with custom labeling and logo printing.

Packaging designed to meet your brand and shipping standards.

Technical & After-Sales Support:

Engineering support for power system matching and flight optimization.

After-sales services including performance testing and troubleshooting guidance.
