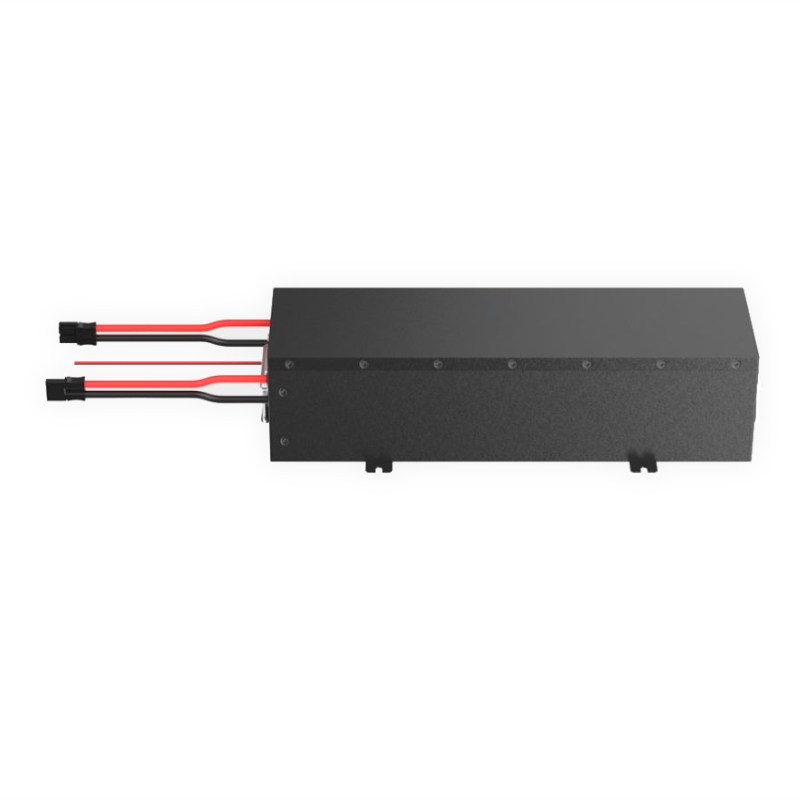

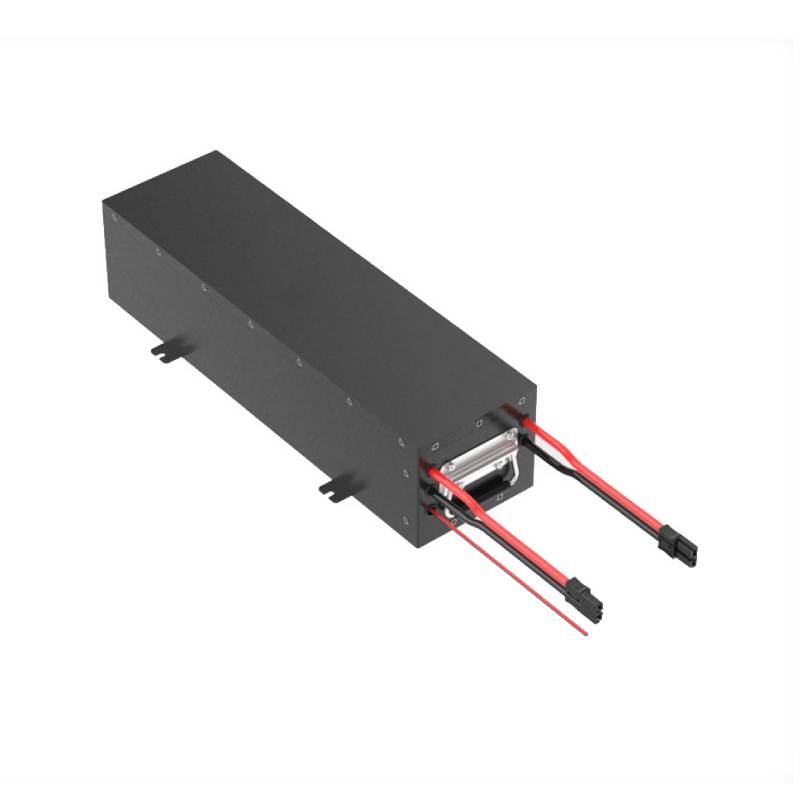

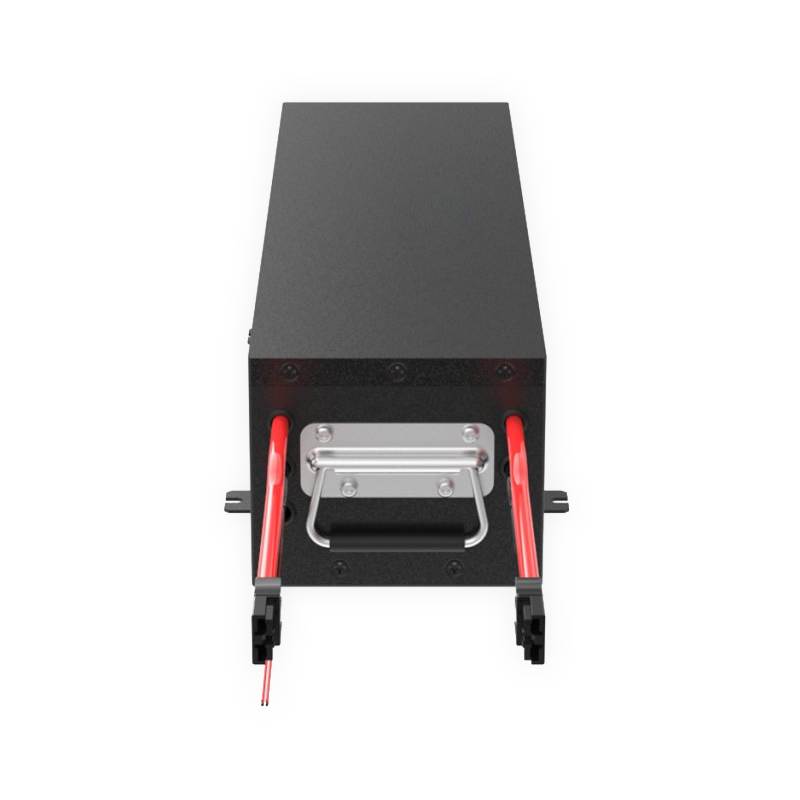

48V AGV Battery Logistics Handling Robot LiFePo4 Battery Pack Customization Support
| Technical Specifications | |||
| Nominal voltage | 48V | Nominal capacity | 26Ah |
| Energy | 1248Wh | Internal resistance | 40mΩ |
| Series and parallel | 15S8P | Output terminal | SAS50A |
| Discharge current | 13.2A | Max.continuous discharge current | 60A |
| Charge current | 13.2A | Max. charge current | 52.8A |
| Discharge temperature | -20-60°C | Charging temperature | 0-45°C |
| Cycle life | ≥2000 times | Communication | RS485 |
| Size | 530*155*128mm | Weight | 17KG |
| Shell material | SPCC | Protection level | IP42 |
High Safety & Reliability
Multi-level safety design with thermal, electrical, and mechanical protection
Flame-retardant housing and reinforced insulation
Designed to withstand vibration, shock, and frequent charge-discharge cycles
Certified & Transport-Ready
Complies with UN38.3, CE, RoHS (and optional UL/IEC standards)
Safe and compliant for air, sea, and land transportation
Application scenarios
Warehousing; logistics; Handling AGV .
