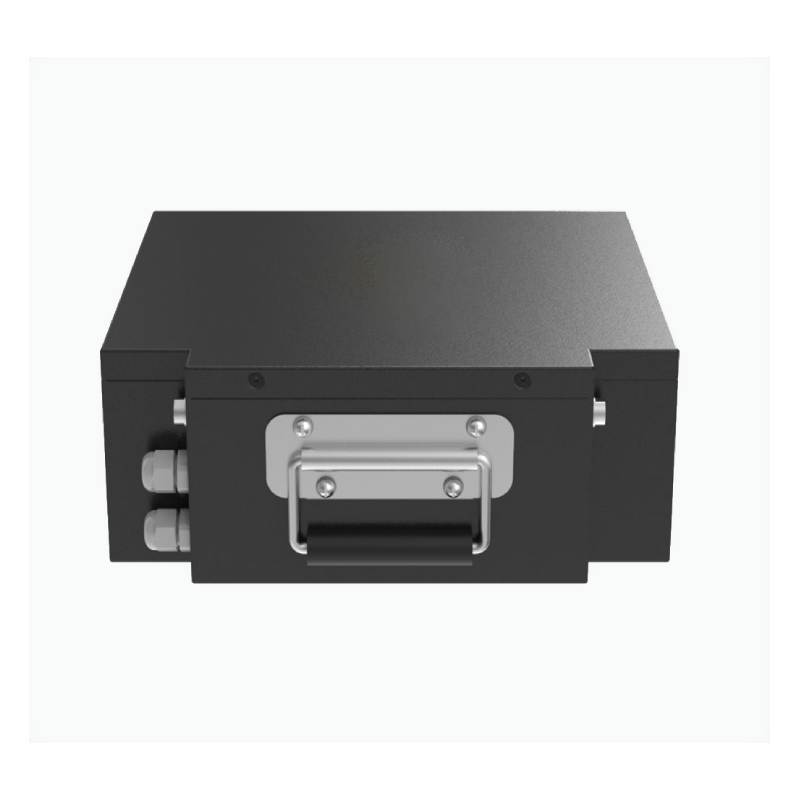

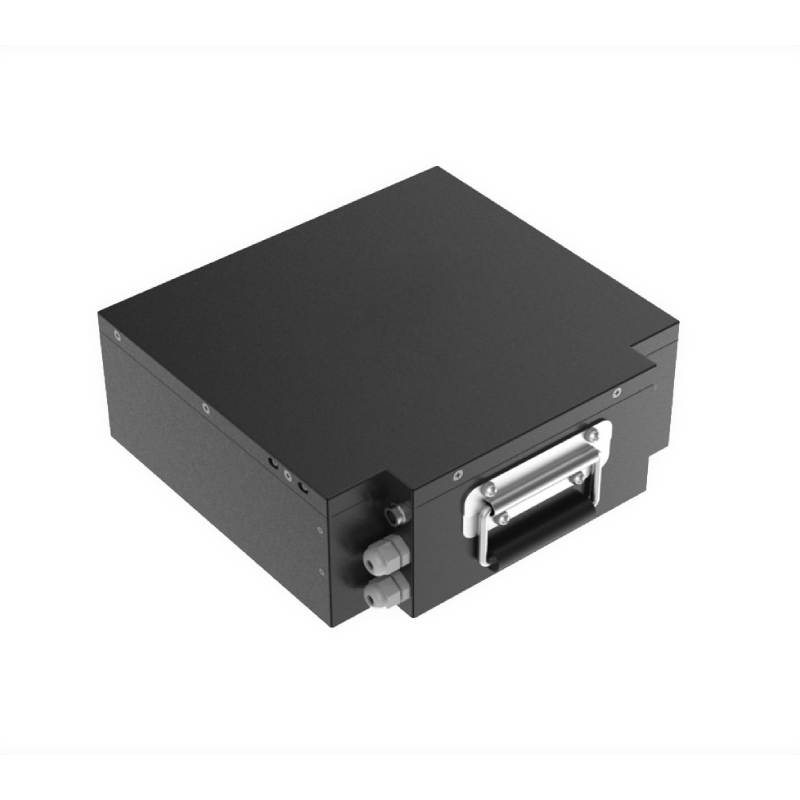

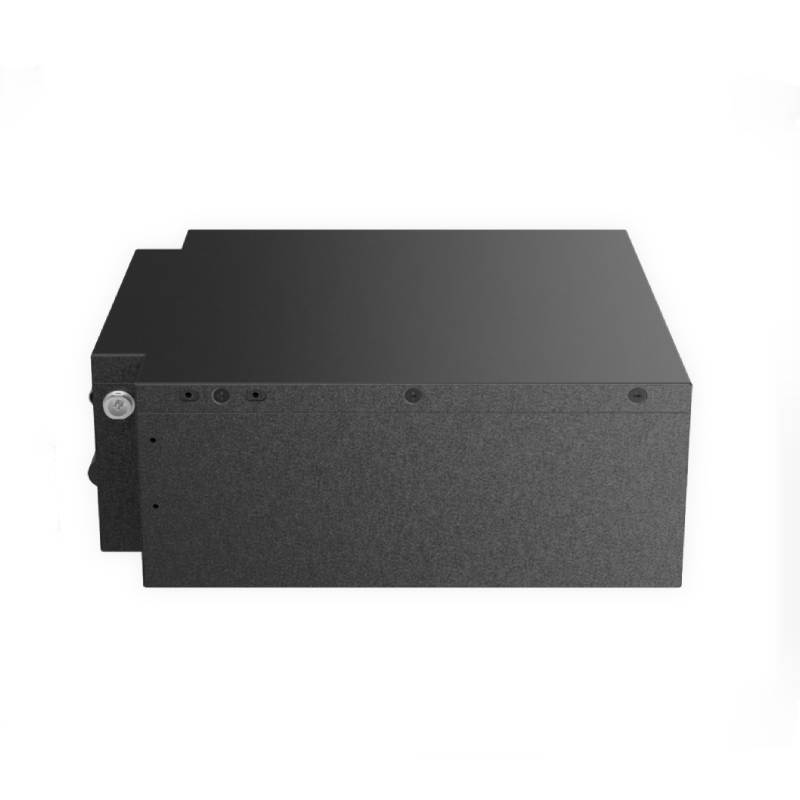

LiFePo4 AGV Battery 25.6V 40Ah Lithium Battery Pack for Robots Logistics Handling AGV
| Technical Specifications | |||
| Nominal voltage | 25.6V | Nominal capacity | 40Ah |
| Energy | 1024Wh | Internal resistance | ≤45mΩ |
| Series and parallel | 8S12P | Output terminal | 5557-4R |
| Discharge current | 15A | Max.continuous discharge current | 20A |
| Charge current | 15A | Max.continuous charge current | 20A |
BMS over-discharge protection current | 50A | Charging voltage | 29.2V |
Over-discharge protection voltage | 20V | Overcharge protection voltage | 30V |
Over-discharge recovery voltage | 24V | Overcharge recovery voltage | 28.8V |
| Discharge temperature | -20-60°C | Charging temperature | 0-45°C |
| Storage temperature | -5-45℃ | Communication | RS485 |
| Size | 290*275*110mm | Weight | 14KG |
| Shell material | SPCC | Protection level | IP42 |
| Cycle life | ≥2000 times | Self-discharge | ＜1% per month |
Product Features:
Customization Support: Personalized customization services are available to meet diverse needs.
Intelligent Control: Battery SOC, voltage, temperature, and other information are uploaded in real time and can be accessed by the device at any time.
Intelligent BMS: Overcharge/over-discharge/over-temperature/over-current/short circuit protection.
Low Power Consumption: Low power consumption design for long standby time.
Application scenarios:
Warehousing; logistics; Handling AGV .
