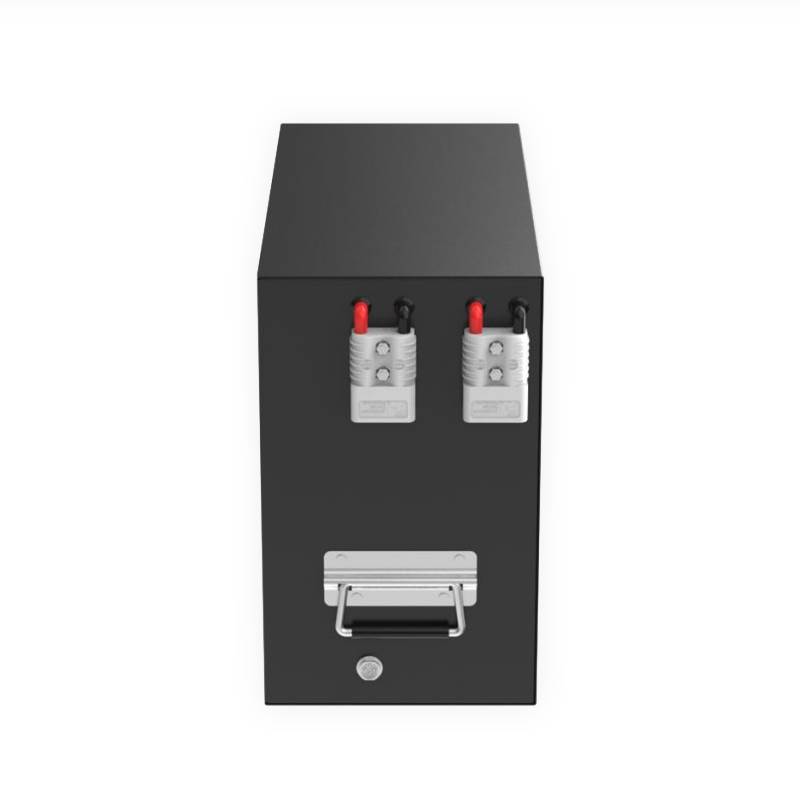

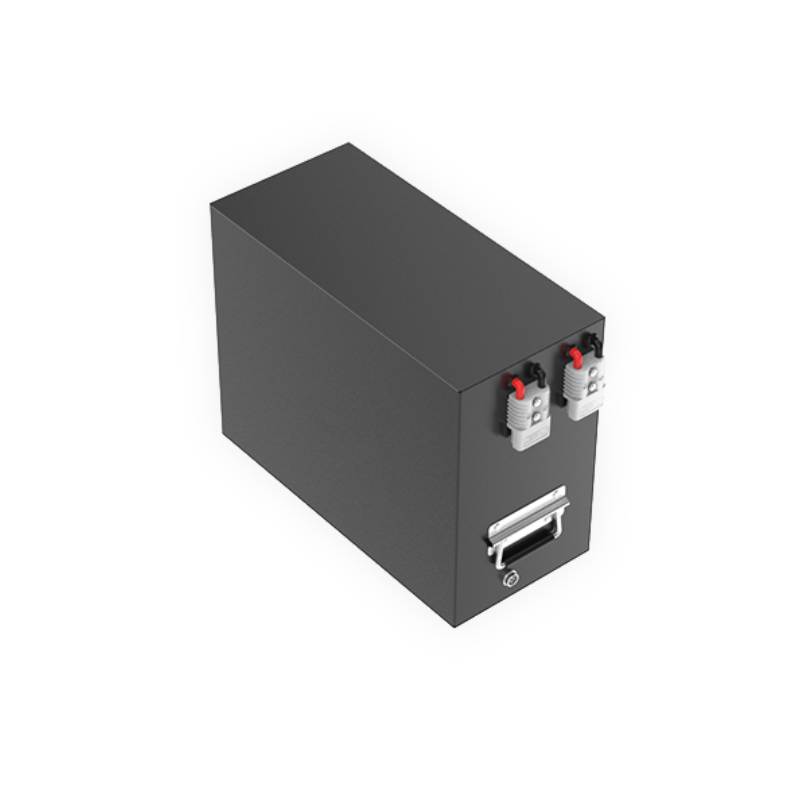

AGV Battery 48V LiFePo4 Battery Pack AGVs for warehousing and logistics Lithium Battery
| Technical Specifications | |||
| Nominal voltage | 48V | Nominal capacity | 72Ah |
| Energy | 3456Wh | Internal resistance | ≤50mΩ |
| Series and parallel | 16S16P | Output terminal | SBS 75X |
| Discharge current | 14A | Max.continuous discharge current | 70A |
| Charge current | 14A | Max. charge current | 35A |
BMS over-discharge protection current | 80A | Charging voltage | 54.75V |
Over-discharge protection voltage | 40.5V | Overcharge protection voltage | 56.25V |
Over-discharge recovery voltage | 48V | Overcharge recovery voltage | 54V |
| Discharge temperature | -20-60°C | Charging temperature | 0-45°C |
| Storage temperature | -5-45℃ | Communication | RS485 |
| Size | 430*330*200mm | Weight | 37KG |
| Shell material | SPCC | Protection level | IP42 |
| Cycle life | ≥2000 times | Self-discharge | ≤1% per month |
Product Features:
Customization Support: Personalized customization services are available to meet diverse needs.
Intelligent Control: Battery SOC, voltage, temperature, and other information are uploaded in real time and can be accessed by the device at any time.
Intelligent BMS: Overcharge/over-discharge/over-temperature/over-current/short circuit protection.
Low Power Consumption: Low power consumption design for long standby time.
Application scenarios:
warehousing and logistics AGVs, Handing AGV
