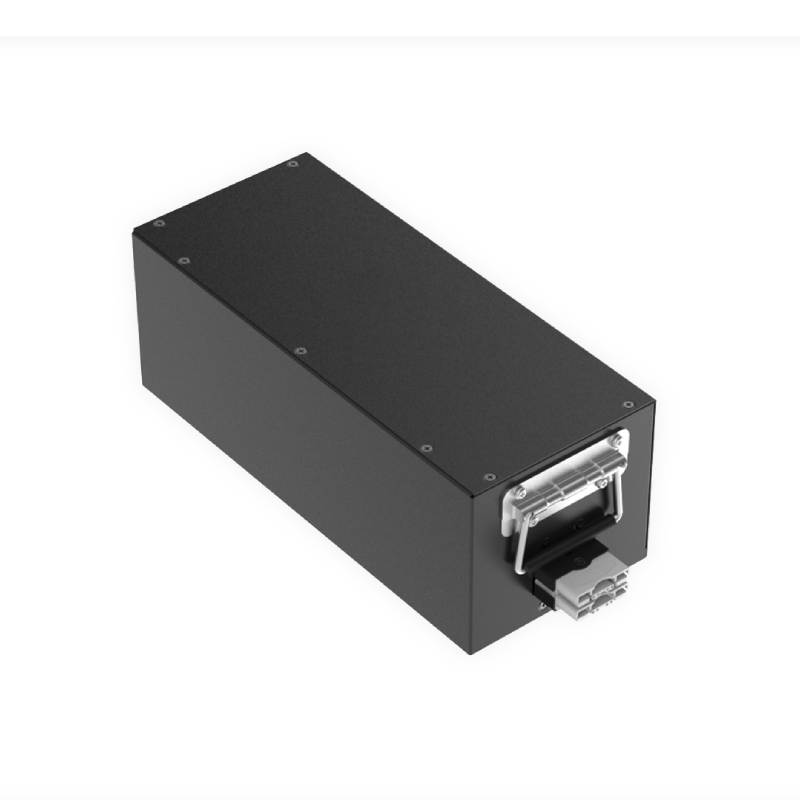

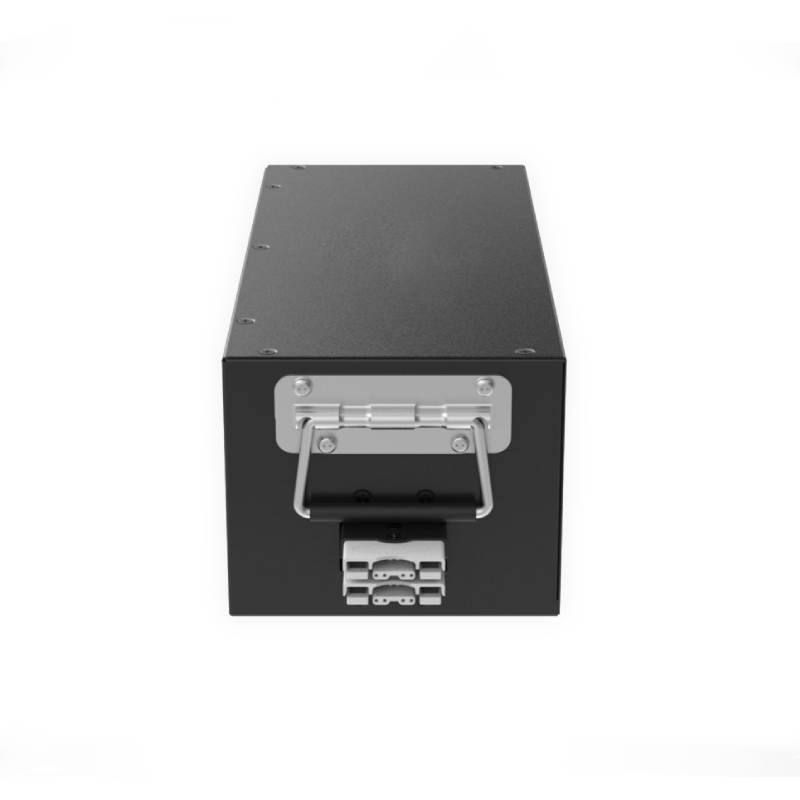

AGV Battery 51.2V 20Ah LiFePo4 Battery Pack for AGVs and Robots Accept OEM ODM
| Technical Specifications | |||
| Nominal voltage | 51.2V | Nominal capacity | 20Ah |
| Energy | 1024Wh | Internal resistance | ≤75mΩ |
| Charging current | 0.5C | Max. charging current | 1C |
| Discharge current | 11.4A | Max.continuous discharge current | 22.8A |
| Charge current | 11.4A | Max. charge current | 22.8A |
BMS over-discharge protection current | 30±5A | Charging voltage | 58.4V |
Over-discharge protection voltage | 35.2V | Overcharge protection voltage | 60V |
Over-discharge recovery voltage | 48V | Overcharge recovery voltage | 48V |
| Discharge temperature | -20-60°C | Charging temperature | 0-45°C |
| Storage temperature | -5-45℃ | Communication | RS485 |
| Size | 381*160*142mm | Weight | 12.1KG |
| Shell material | SPCC | Protection level | IP42 |
| Cycle life | ≥2000 times | Self-discharge | ＜1% per month |
Product Features:
Customization Support: Personalized customization services are available to meet diverse needs.
Intelligent Control: Battery SOC, voltage, temperature, and other information are uploaded in real time and can be accessed by the device at any time.
Intelligent BMS: Overcharge/over-discharge/over-temperature/over-current/short circuit protection.
Low Power Consumption: Low power consumption design for long standby time.
Application scenarios:
Light-duty vehicle AGVs, warehousing and logistics AGVs, robots, etc.
