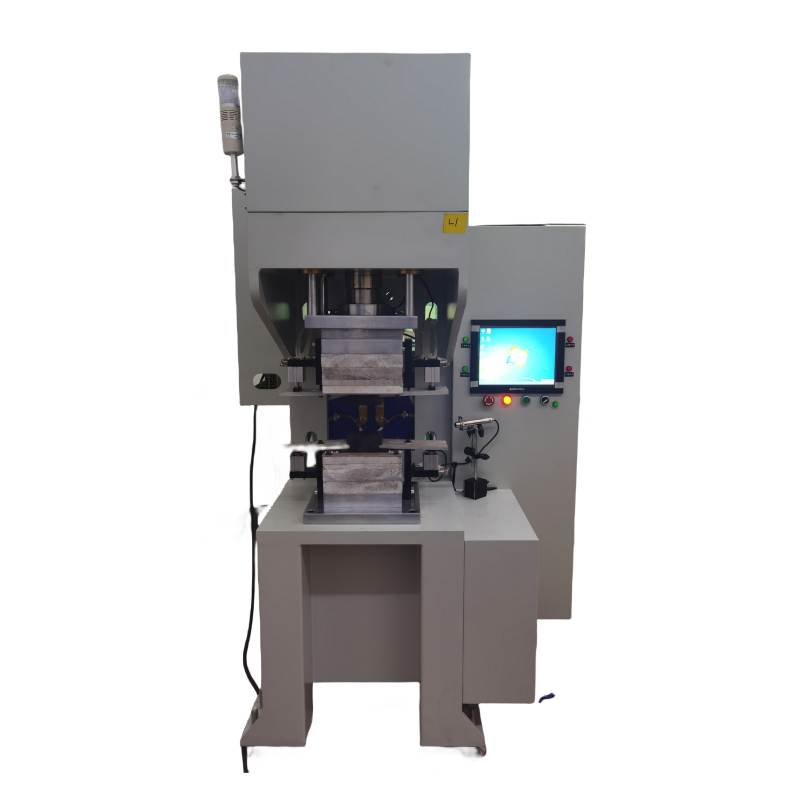

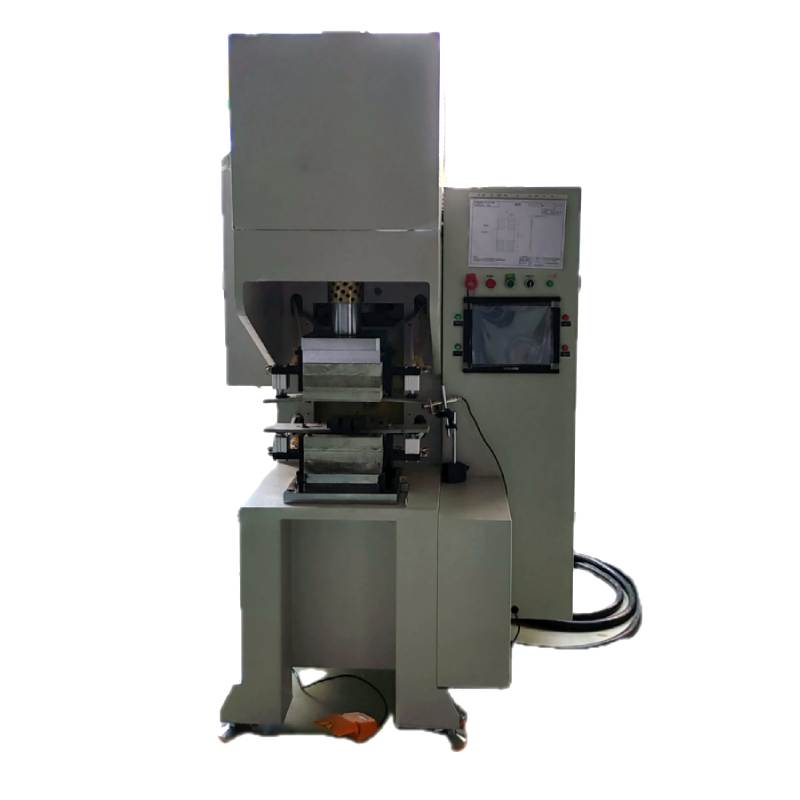

Servo electric cylinder aluminum polymer diffusion welding machine
| Item | Unit | Technical Specifications |
| Transformer capacity | KWA | 90 |
| Structural type | C-type servo electric cylinder lifting welding workbench | |
| Control method | Industrial control system | |
| Temperature control range | ℃ | Room temperature to 900℃, with dual temperature control for graphite |
| Work environment temperature | ℃ | -5~45℃ |
| Max. output pressure | Ton | ≤5/10 |
| Workbench adjustable height | mm | ≤150 |
| Air source input pressure | Mpa | 0.5 ~0.8Mpa |
| Input power supply | Three-phase four-wire AC 380V 50Hz 50A | |
| Welding area | mm² | 100*100*6mm (The smaller the area, the faster the speed.) |
| Cooling water consumption | L/min | 150 |
| Electrode area | mm² | 200*250 |
Equipment dimensions(L * W * H) | mm | 1210*1250*2150 |
Control Mode: This machine adopts an advanced touch screen + computer industrial control + human interface working method.
Usage: This machine is mainly used for the aluminum conductive soft and hard connections between battery modules of new energy vehicle battery packs (PACK), BDU conductive connections, air switches in power systems, aluminum conductive soft and hard connections in power bus ducts, and aluminum conductive soft and hard connections for high current in EMUs.
Structure: C-shaped + four-column guide frame structure. It mainly consists of output transformers, industrial control system, servo electric cylinder pressure system, heating and temperature measurement control system, and current control system.
