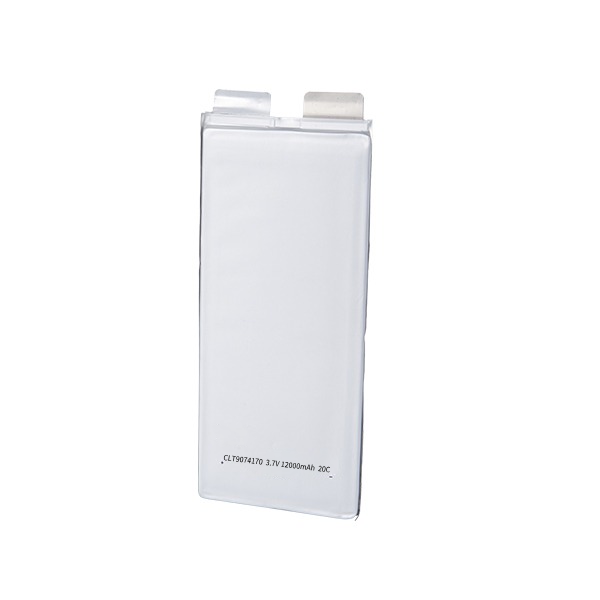

CLT9074170 3.7V 12000mAh 20C Multipole Pouch Battery Cell High Rate
Technical Specifications
Nominal Voltage:3.7V
Nominal Capacity:12000mAh
Internal resistance:≤2.5mΩ
Discharge Rate:20C
Energy density(weight):171Wh/KG
Energy density(volume):378Wh/L
Nominal Energy:44.4Wh
Dimensions:9.2*74.8*170.8mm
Weight:＜260g
Tab width:25mm
Center distance of the Tab:39±2mm
Tab length:10mm
Product Features
Long Cycle Life
High Energy Density
Good Power Performance
High Rate
Usage scenarios
Drone battery
