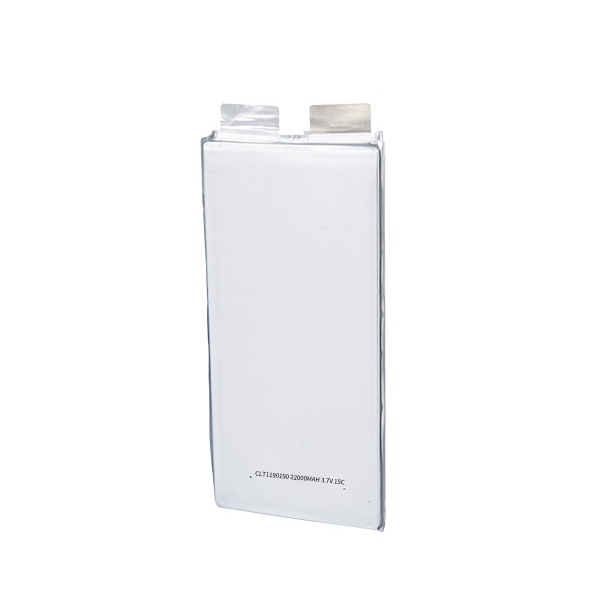

CLT1190190 3.7V 22000mAh 15C Multipole Pouch Cell High Rate battery for Drone battery

Technical Specifications

Nominal Voltage:3.7V

Nominal Capacity:22000mAh

Internal resistance:≤3.0mΩ

Discharge Rate:15C

Energy density(weight):187Wh/KG

Energy density(volume):420Wh/L

Dimensions:11.3*90.8*190.8mm

Weight:＜435g

Tab width:30mm

Center distance of the Tab:47±2mm

Tab length:12mm

Product Features

Long Cycle Life

High Energy Density

Good Power Performance

High Rate

Usage scenarios

Drone battery
