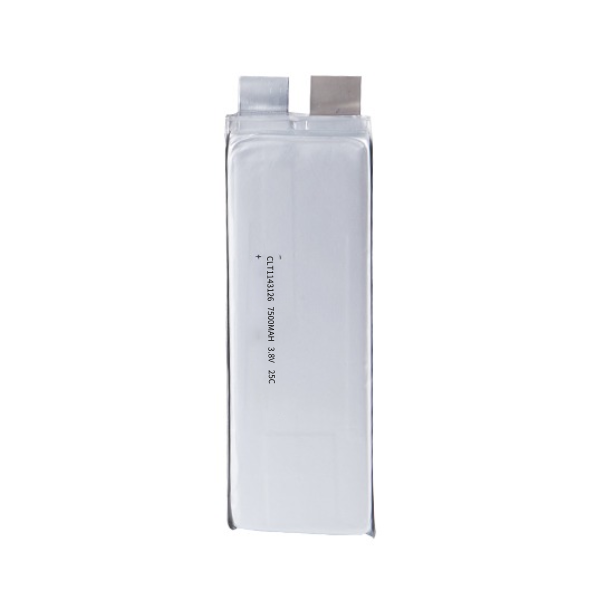

CLT1143126 3.8V 7500mAh 25C Multipole Pouch Cell High Rate battery for Drone battery
Technical Specifications
Nominal Voltage:3.8V
Nominal Capacity:7500mAh
Internal resistance:≤2.0mΩ
Discharge Rate:25C
Energy density(weight):226Wh/KG
Energy density(volume):467Wh/L
Nominal Energy:28.5Wh
Dimensions:11*43.8*126.8mm
Weight:＜126g
Tab width:15mm
Center distance of the Tab:21±2mm
Tab length:10mm
Product Features
Long Cycle Life
High Energy Density
Good Power Performance
High Rate
Usage scenarios
Drone battery
