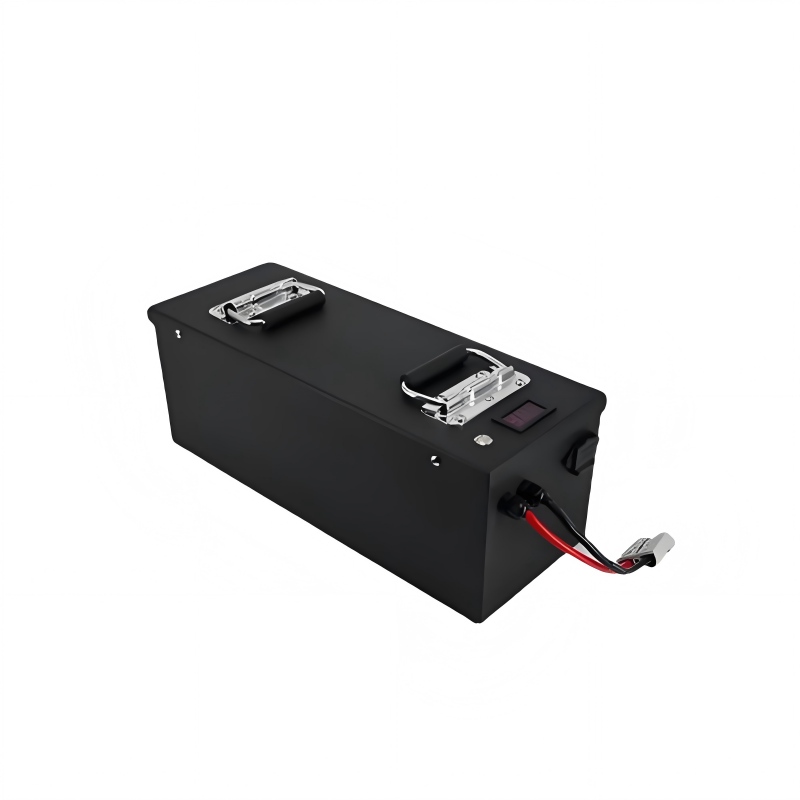

25,6 В 72 А·ч Аккумулятор для подъемной рабочей платформы Электрические ножничные подъемники

Technical Specifications

Battery type:LiFePo4 battery

Nominal voltage:25.6V

Nominal capacity:72 Ah

Stored energy:1843.2Wh

Overcharge protection voltage:29.2V

Discharge cut-off voltage:20V

Maximum continuous discharge current:72A

Peak discharge current:150A(10s)

Cycle life:@25±5℃, ≥3000 cycles, 0.5℃ charge/0.5℃ discharge

Dimensions :455*165*238mm

Standard case weight:20±1.5kg

Ingress protection:IP65

Vehicle communication mode:CAN

Charging temp:-20℃ to 55℃

Discharging temp:-20℃ to 60℃

Application vehicle:4meter Scissor lift aerial work platform
