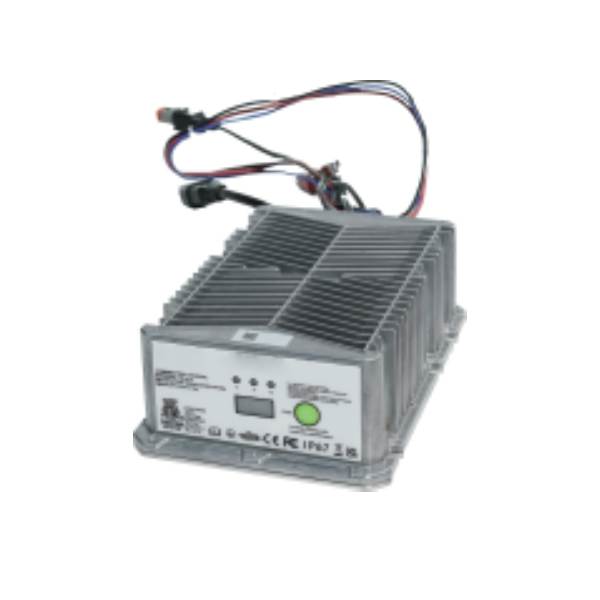

CLT2415 375W DC 24V Aerial Lift Vehicle Power Supply 380V AC Protection Electric Scissor Lifts

Product Specifications

Output power:375W

Operating ambient temperature:-40℃~+65℃

Storage environment temperature:-40℃~+85℃

Operating ambient humidity:5~90%

Input overvoltage protection(AC):270V~290V

AC high voltage protection(AC):Up to 420V

Input voltage range(AC):90V~265V

Nominal input voltage(AC):100V~240V

AC input voltage frequency:45Hz~65Hz

Rating output voltage(DC)：24V

Rating output current(DC)：15A

Output voltage accuracy：1%

Output current accuracy：3%

Efficiency：93%max

EMC：Class A

Size：226*152*73mm

Features

Aluminum die-casting &natural heat dissipation

IP67 protection

Lithium/lead-acid battery compatible with built-in charging curve

Support charging lock

Support CAN communication

OLED scrolling digital real-time display

Support wide voltage working input

Support high voltage and low voltage input protection

Support breakthrough 380 voltage ac protection

Efficiency:94% max

Support USB intelligent function

Battery reverse connection protection

Short circuit protection

Over temperature protection

Application areas:Electric scissor lifts
