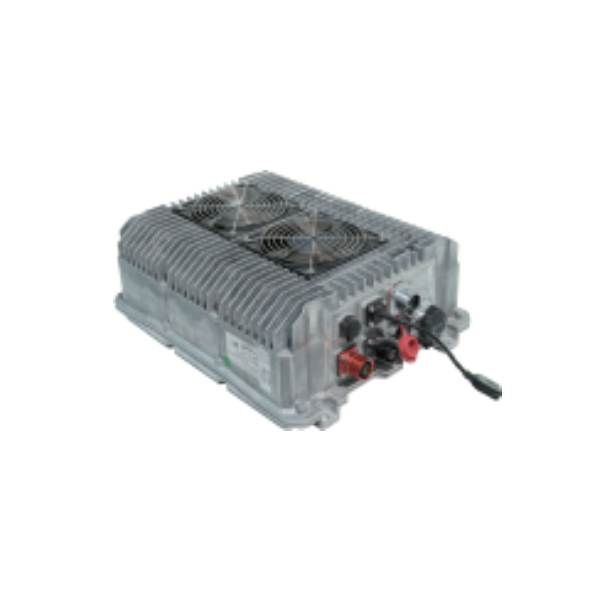

CLT8080 Aerial Lift Vehicle Power Supply 6.4KW Power Supply 80V Curved Boom & Straight Boom Lifts

Product Specifications

Output power：6.4KW

Working ambient temperature:-40℃~+65℃

Storage environment temperature:-40℃~+85℃

Working environment humidity:5-90%

Input overvoltage protection(AC):420V-440V

Input voltage range(AC):140V-430V

Nominal input voltage(AC):200V-400V

AC Input voltage frequency:45Hz-65Hz

Rating output voltage(DC):80V

Rating output current(DC):80A

Output voltage accuracy:7%

Output current accuracy:3%

Efficiency:93%max

EMC:Class A

Size:369*289*137mm

Features

Support wide voltage working Input

Support high voltage and low voltage input protection

Aluminum die-casting &fan cooling

support power switching:3KW(mid-range)6.4KW(high-grade)

support charging lock

Power/operation/fault display with LED

IP67 protection

Support CAN communication

Lithium/lead-acid battery compatible with built-in charging curve

Support USB Intelligent function

Reverse battery protection

Short circuit protection

Over temperature protection

Application areas:80V curved boom&straight boom lifts
