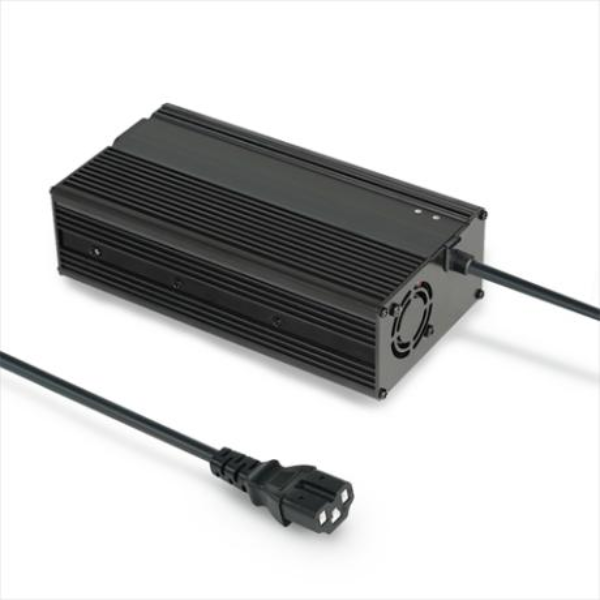

450WWF series 110/220Vac Lithium portable battery charger for AGVs electric motor
Product Specifications
| Models | Nominal voltage | Output voltage range | Max. output current |
| CLT-294120 | 24V | 25.2~29.4V | 12A |
| CLT-588080 | 48V | 54.6~58.8V | 8A |
| CLT-730065 | 60V | 67.2~73V | 6.5A |
| CLT-882050 | 72V | 84~87.6V | 5A |
Technical Parameters
Ac input voltage range：90~264VAC；47Hz~63Hz
Max. current of AC input：6A@110VAC ，3A@220VAC;
Power factor：≥0.95@110VAC ，≥0.9@220VAC；
Overall efficiency：≥91%；
Standards compliant：EN60335, EN55032
Certification：CE ,ROHS

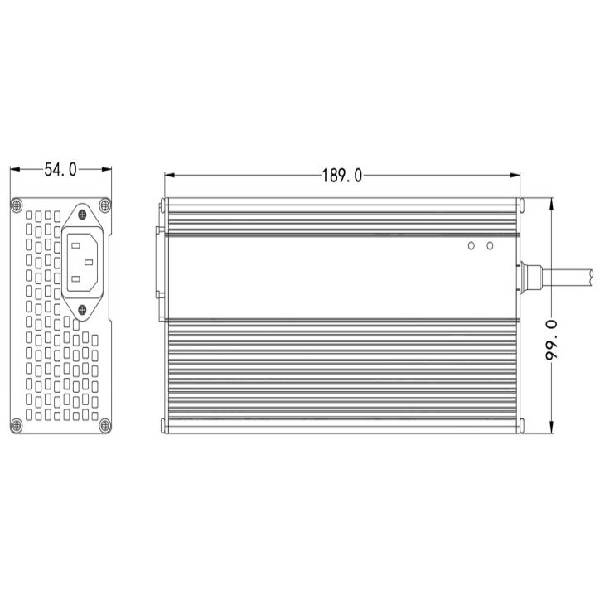

Size,Weight and Temperature
Net weight： About 1 kg
Working temperature： -20℃-40℃
Storage temperature： -20℃-85℃
