120W PET/ETFE Flexible Mono Solar Panel 22% High Efficiency

Key Parameters

Max. Power : 120W

Max. Supply Voltage: 18.0V

Max. Power Current: 6.66A

Open Circuit Voltage: 21.6V

Short Circuit Current:7.32A

Max. Power Tolerance:±3%

Efficiency: 22.0%

Protection Rating: IP67 waterproof

Snow Load: 5400Pa

Wind Resistance:2400Pa

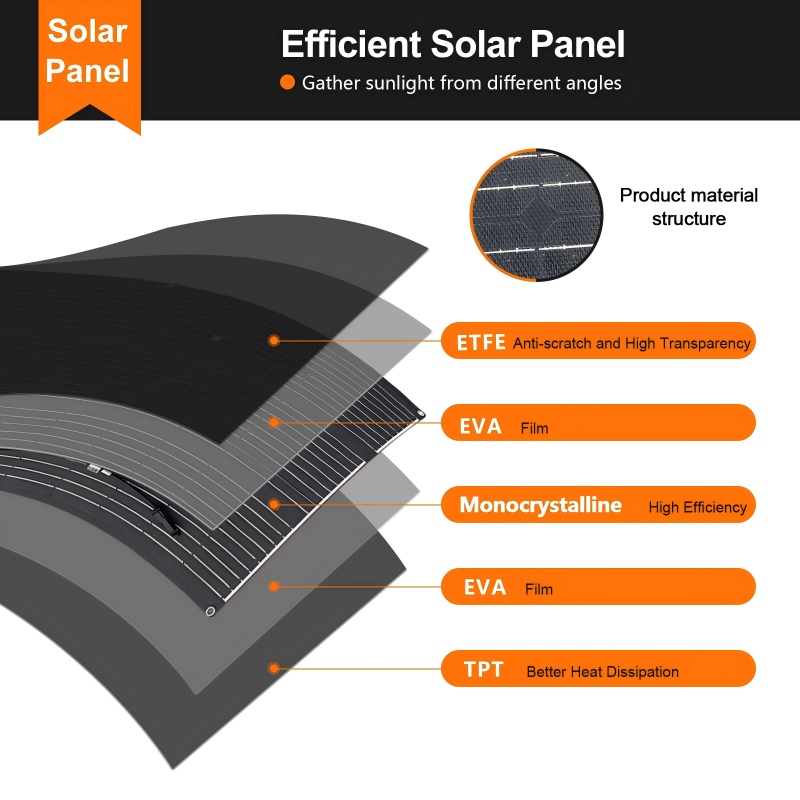

Solar Panel Type: Grade A Monocrystalline Silicon

Junction Box:IP67

Connector:MC4

Size:900*665*2.5mm

Weight (without box): 1.7kg

PMAX Temperature Coefficient :-0.38%/℃

VOC Temperature Coefficient :-60.5mV/℃

ISC Temperature Coefficient :22mV/℃

Notify :47℃±2℃

Operating  Temperature:-2℃~65℃

Certifications: FCC, CE, RoHS

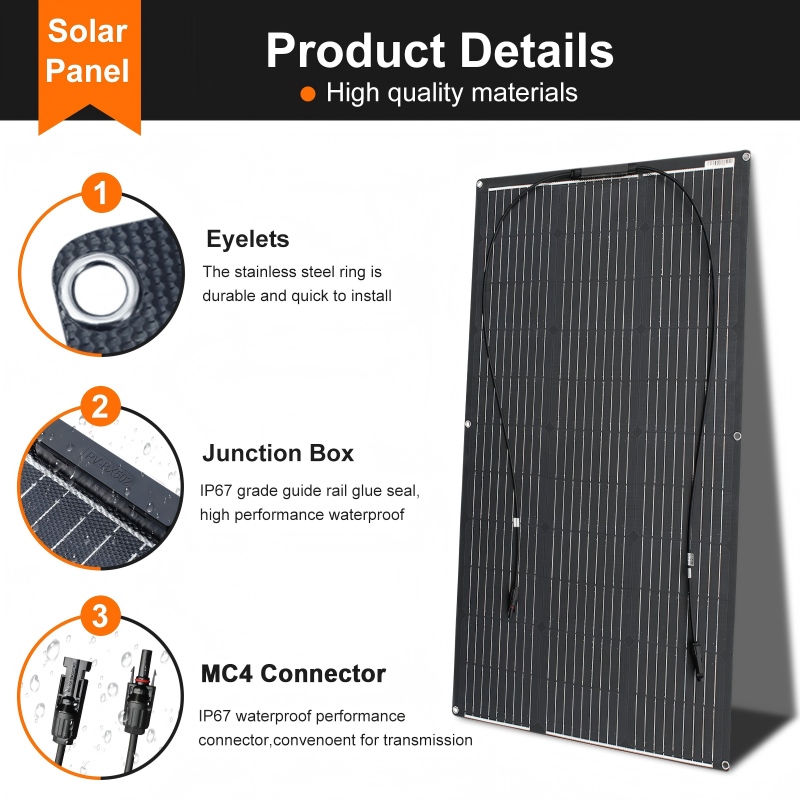

Product Fectures

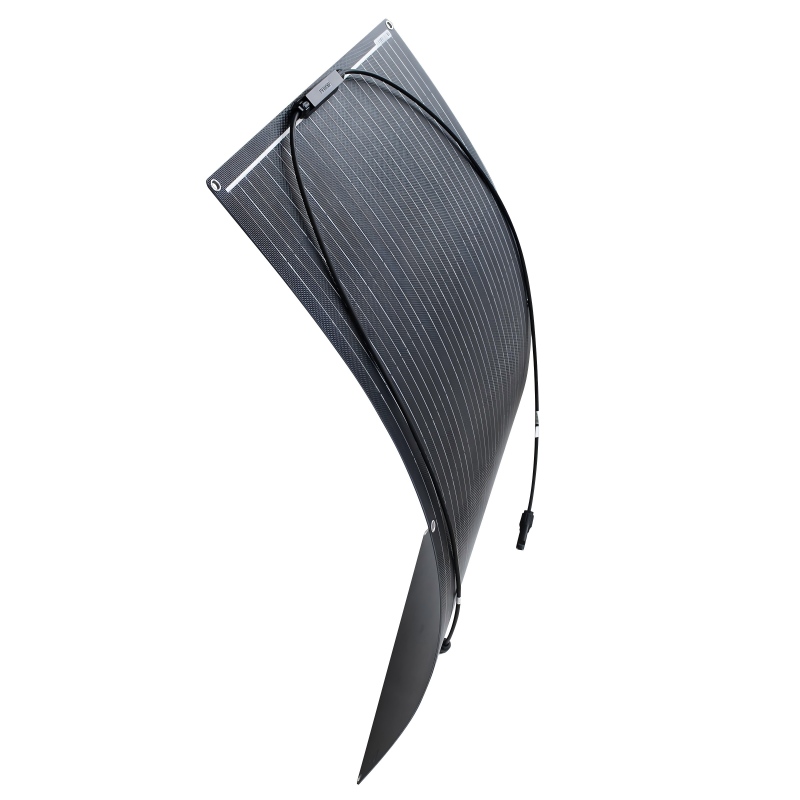

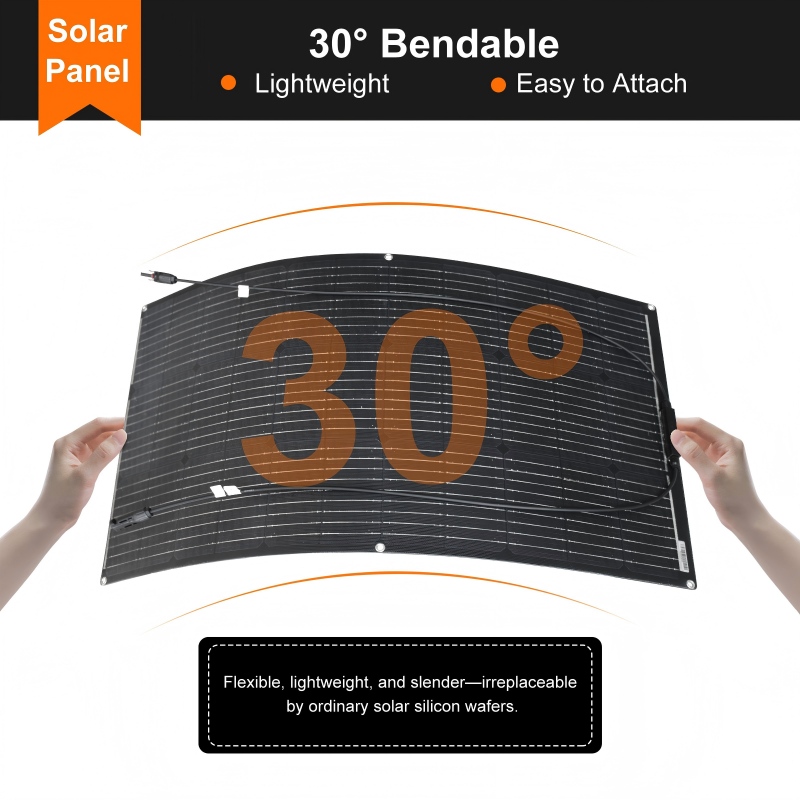

1.Ultra Lightweight and Thin

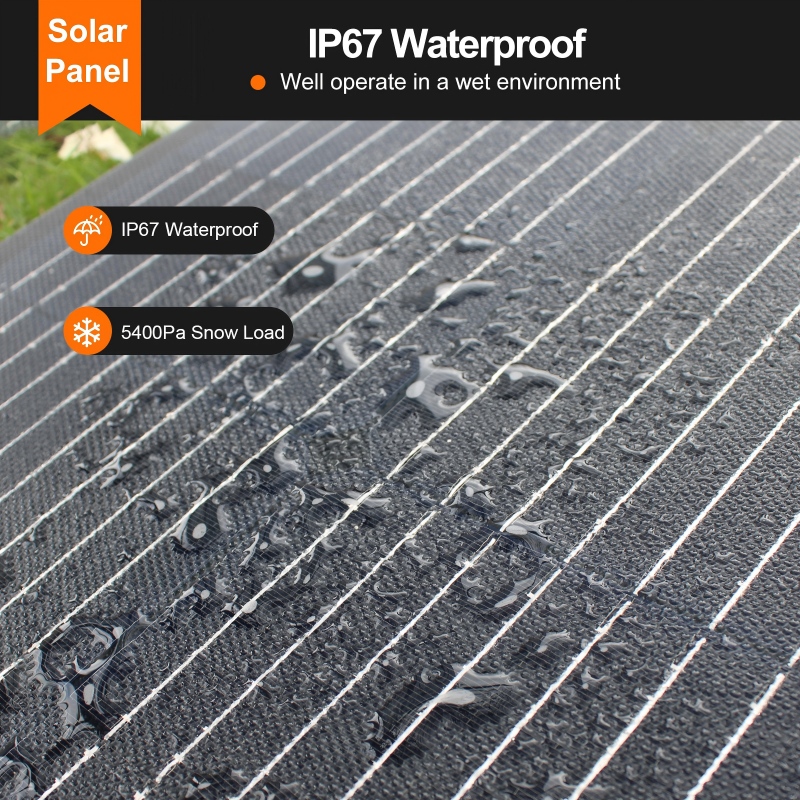

2.IP67 Waterproof-Well operate in a wet environment

3.Durable & Waterproof Surface

4.Stainless Eyelets-Easy to Mount and Secure

5.Adapt to various outdoor weather conditions

6.Gather sunlight from different angles

Applications

Outdoor Camping & Hiking –Power your mobile devices, GPS units, and portable lights while off-grid.

Roof-top–Home solar system, suitable for irregular roofs

Emergency Preparedness – Reliable backup power source during natural disasters or blackouts.

RV, Caravan, Van Life and Boat – Keep devices charged without draining your vehicle battery.

Sustainable Living – Eco-friendly charging alternative for everyday use.
