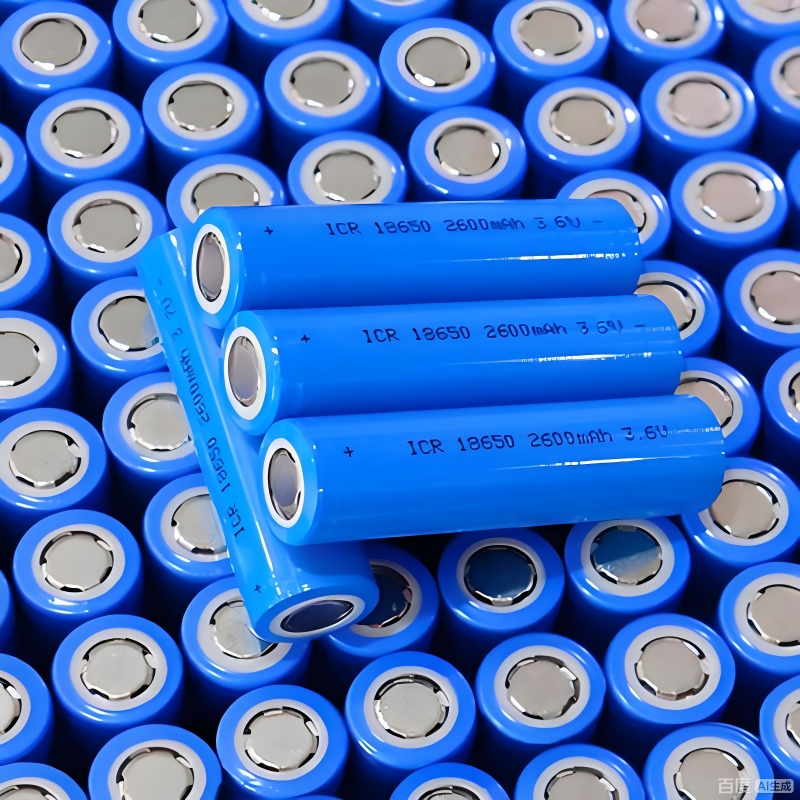

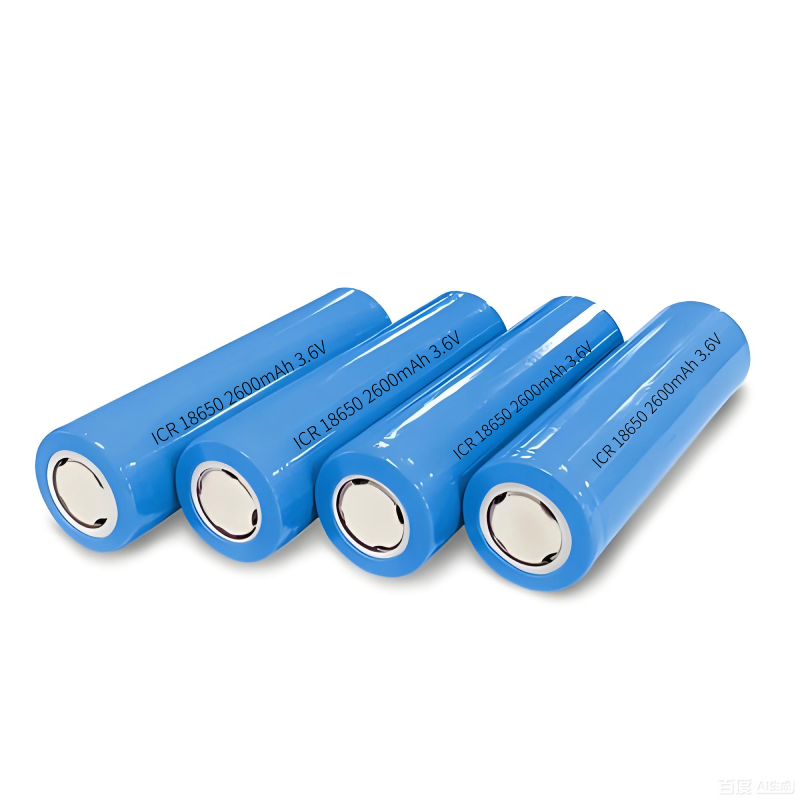

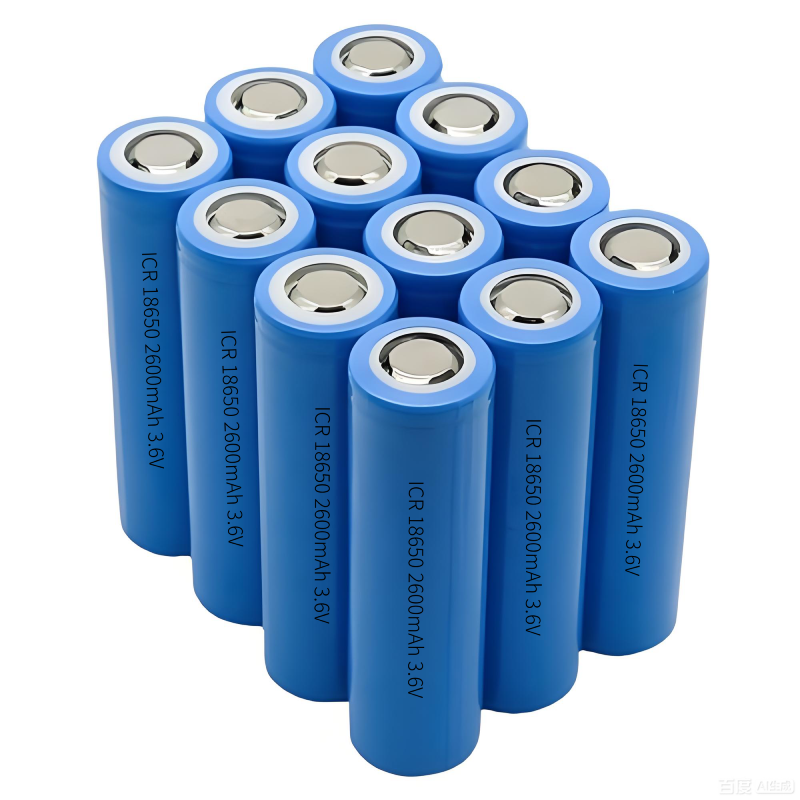

NCM 18650 3.6V 2600mAh 5C Ternary Battery Cell High-rate battery

Product parameters

Model:ICR18650

Typical capacity: 2600mAh

Minimum capacity: 2550mAh

Nominal voltage :3.6V

Cathode material: NCM

Ac internal resistance: ≤22mΩ

Cell weight: 46.0±2.0g

Minimum discharge termination voltage:2.75V

Maximum charging limit voltage:4.20±0.03V

Charging current (standard continuous cycle):0.5C5A

Standard discharge current:1C5A

Fast charging current:1C5A

Maximum continuous discharge current: 13A

Cycle: ≥500 cycles

Discharge temperature range: -20 to 60 °C

Storage temperature: -20 ~ +60C (≤1 months)

                                   -20 ~ +45C (≤3 months)

                                     -20 ~ +25C(≤12 months)

Shelf life: 1 year
