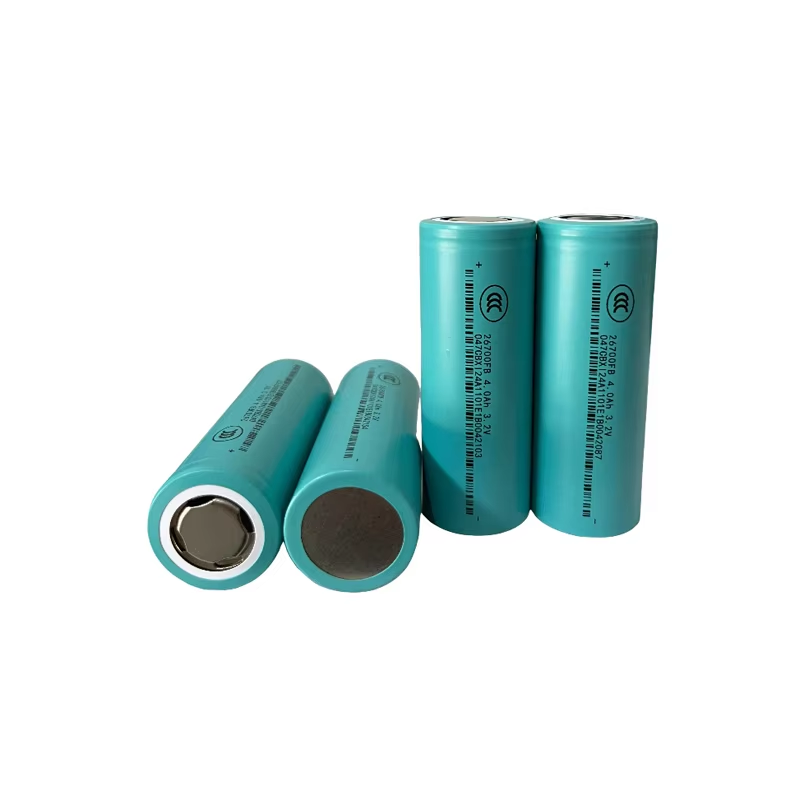

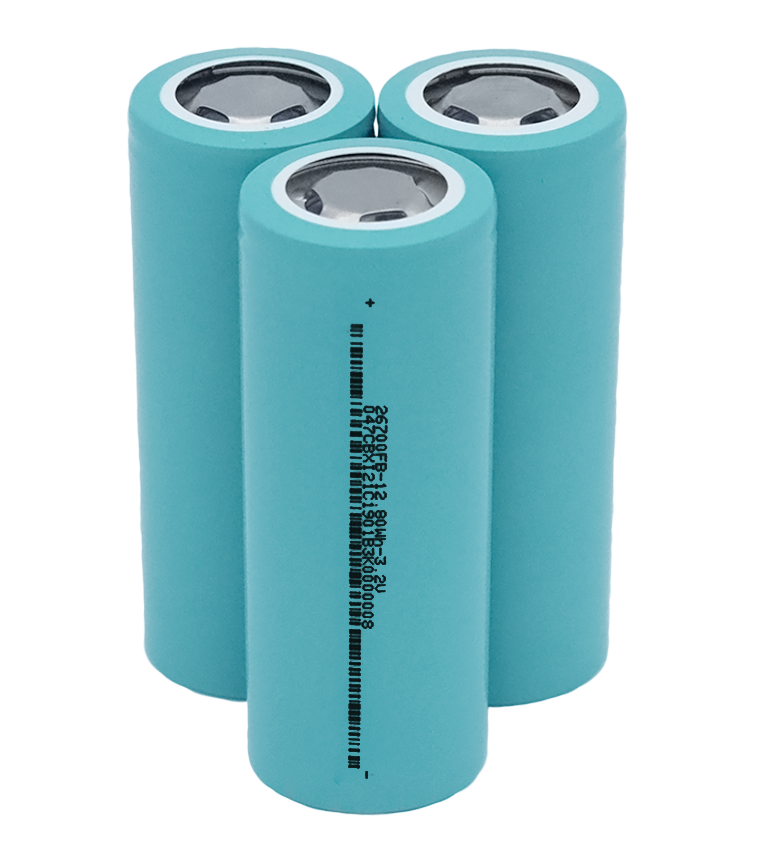

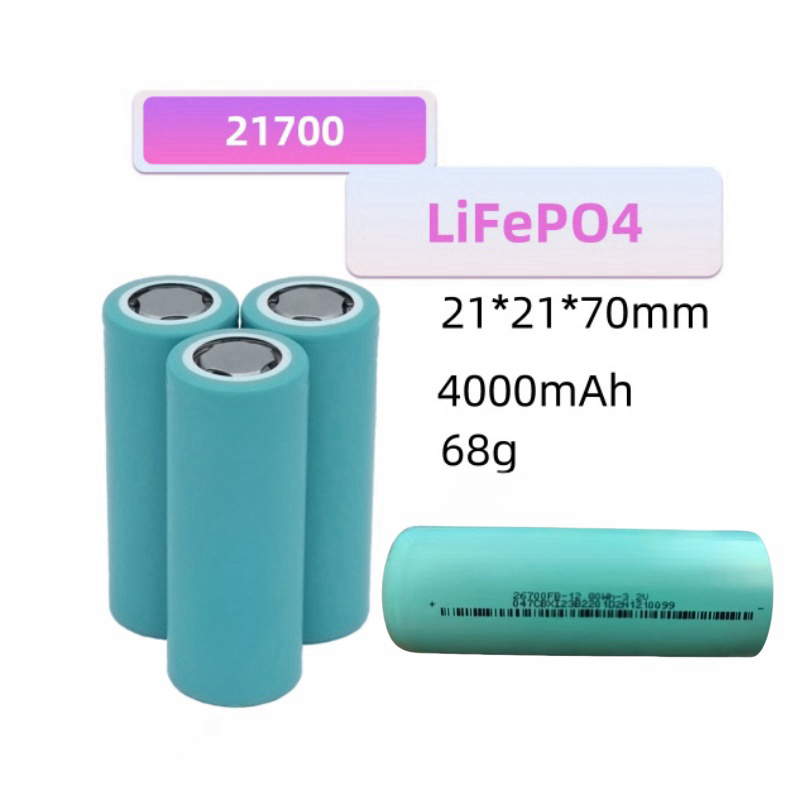

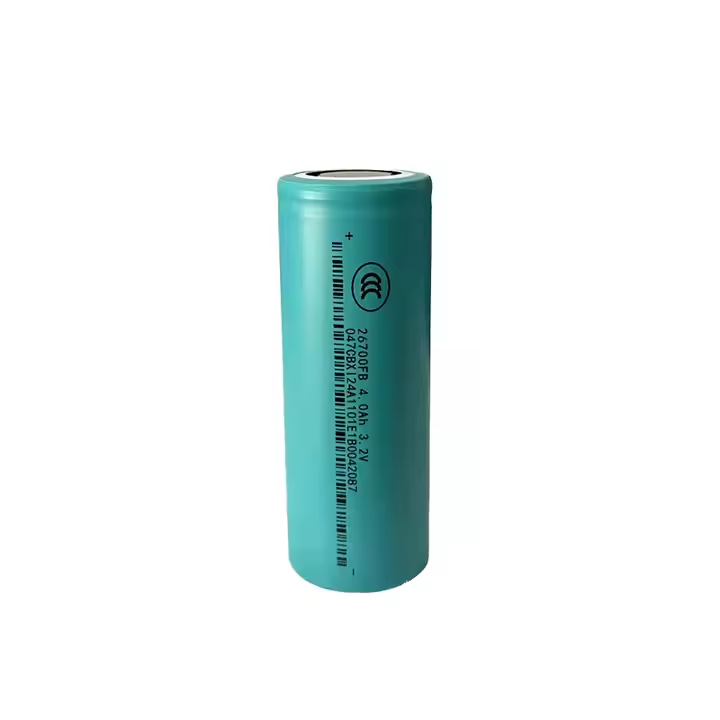

LiFePo4 battery 26700 3.2V 4000mah Cylindrical Cell Lithium Iron Phosphate
Product Introduction
The Cylindrical Lithium Iron Phosphate (LiFePO₄) Battery 26700 – 3.2V 4000mAh is a high-performance energy solution designed for applications in energy storage systems and light electric vehicles. With its stable voltage, long cycle life, and enhanced safety features, this battery cell delivers reliable and efficient power in demanding environments. Its cylindrical 26700 form factor ensures easy integration into a wide range of battery packs and systems.
Product parameters
Model:26700FB
Typical capacity: 4000mAh
Minimum capacity: 3900mAh
Nominal voltage :3.2V
Cathode material: LFP
Ac internal resistance: ≤16mΩ
Cell weight: 89.0±3.0g
Charging cut-off voltage: 3.6V
Discharge cut-off voltage: 2.0V
Maximum continuous discharge current: 3C
Maximum continuous charging current: 1C
Cycle: ≥3000 cycles
Charging temperature: 0-55℃
Discharge temperature: -20 to 60℃
Storage temperature: -20 to 45℃ (for 3 months)
-10 to 25℃ (6 months)
Shelf life: 1 year
Applications
Energy storage, light electric vehicles
Material and style
Lithium iron phosphate battery (LiFePO4)
Cylindrical cell
Customized service
1. Labels and Brands
Custom logo printing
Self-owned brand packaging
Color and design customization
2. Technical indicators
Custom battery capacity options (e.g., 1200mWh, 1500mWh
Special voltage or discharge rate requirements
Pulse current
3.OEM&ODM module customization service
Application scenarios
Series-parallel scheme
Voltage and capacity
Certification requirements
Quality control
1.The warranty period of the battery cells from the date of shipment shall be determined in accordance with the contract. However, within this period, if the quality issue of the battery cells is not due to the manufacturing process of Shenzhen Clition Technology Co., Ltd., but rather caused by the customer's misuse, Shenzhen Clition Technology Co., Ltd. does not promise to replace them for free.
2.Shenzhen Clition Technology Co., Ltd. shall not be held responsible for any problems arising from violations of safety regulations.
3.Shenzhen Clition Technology Co., Ltd. assumes no responsibility for any issues arising from its use in conjunction with circuits, battery packs, or chargers.
4. Defective battery cells produced by the customer during the battery cell assembly process after shipment are not covered by the quality guarantee of Shenzhen Clition Technology Co., Ltd.
Packaging and transportation
Method One: Each small box contains 80 battery cells, and each large box contains two small boxes. The large boxes are placed on the pallet.
Method Two: Each small box contains 80 battery cells, and the small boxes are placed on the pallet.
Shipment: Individual cells are shipped at 20-30% of their charging capacity or as per customer requirements. The remaining capacity of the cells before charging after shipment depends on the storage time and conditions.
Shipping Methods:
1. Express: DHL, FedEx, UPS, TNT (small orders or samples)
2. Air freight: For medium-volume, time-sensitive orders
3. Sea freight: For large-volume shipments
