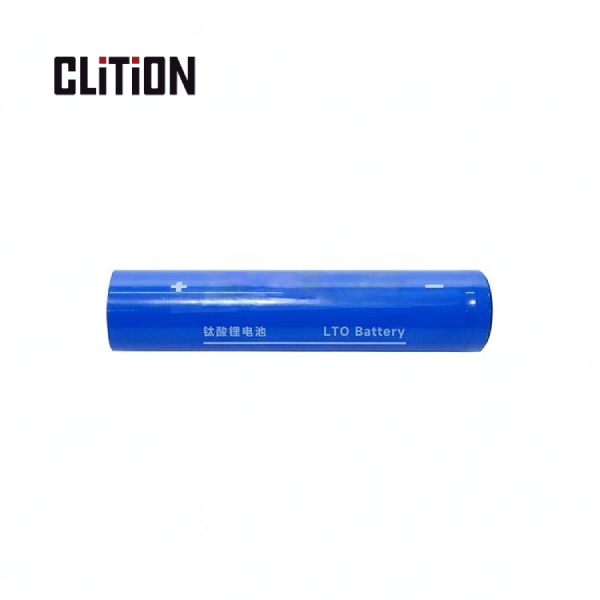

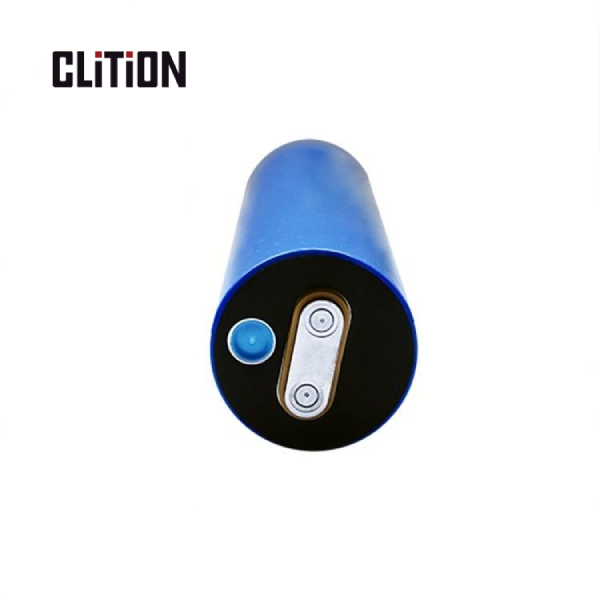

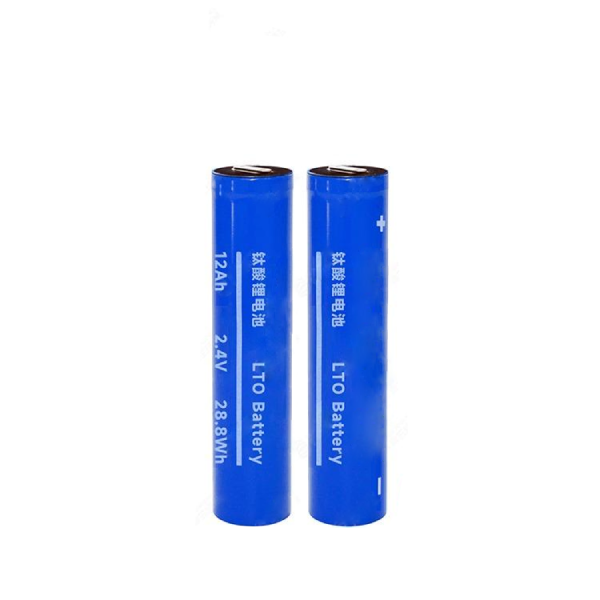

2.4V 12Ah lithium titanate battery 28.8Wh 33140 LTO battery

Product Parameter

Weight:295g±15g

Nominal capacity:12Ah

Nominal voltage:2.4V

Nominal Energy:23Wh

Energy Density:97.6Wh/kg

Resistance:≤1.5mΩ(AC, 1000Hz)

Charging cut-off voltage:2.9V

Discharging cut-off voltage:1.5V

Standard charging current:12A

Standard discharging current:12A

Max. Constant Charging Current:48A

Max. Constant Discharging Current:48A

Max. Charging Current:96A

Max. Discharging Current:96A

Temperature Range for Storage:

Less than one year: -10~25°C;

Less than three months: -30~45°℃

Transportation Voltage:≥2.4V
