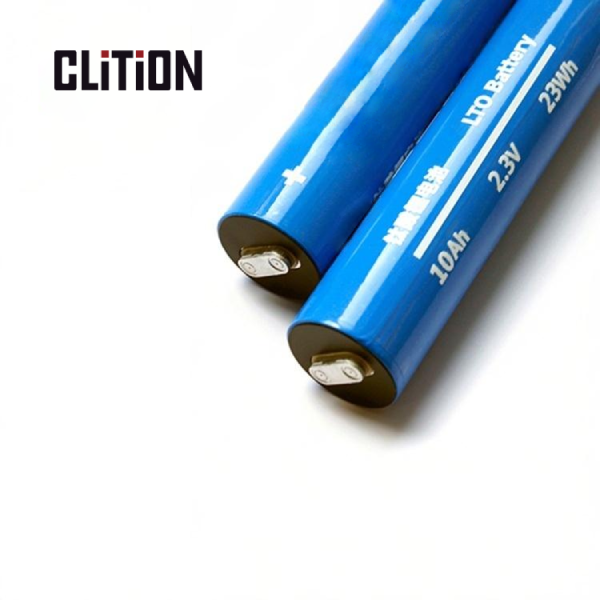

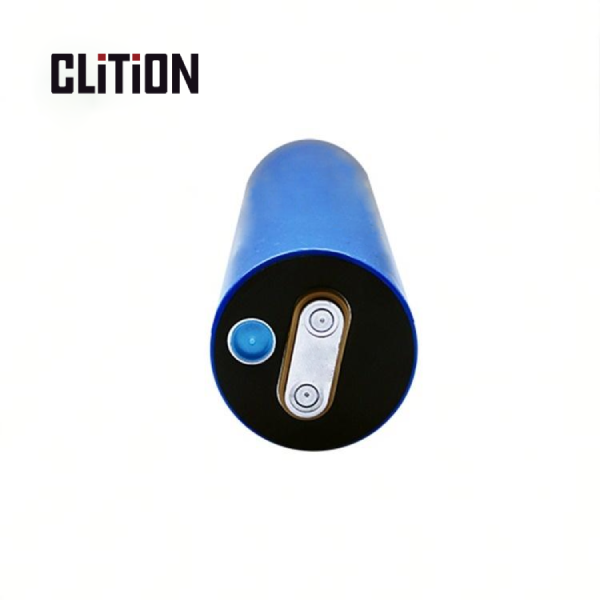

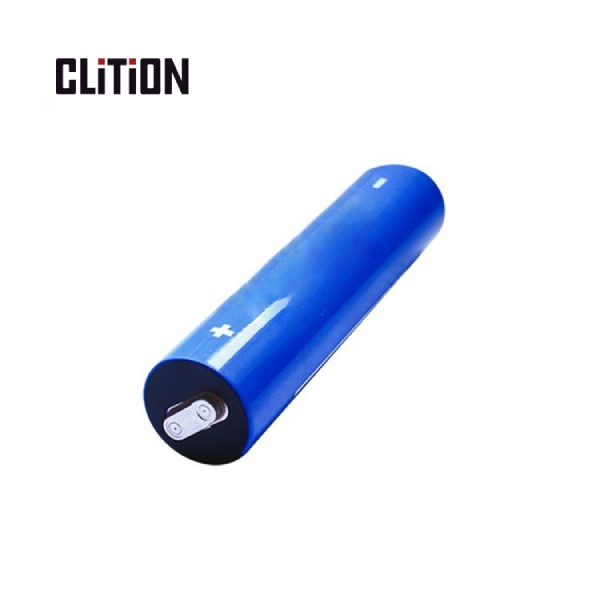

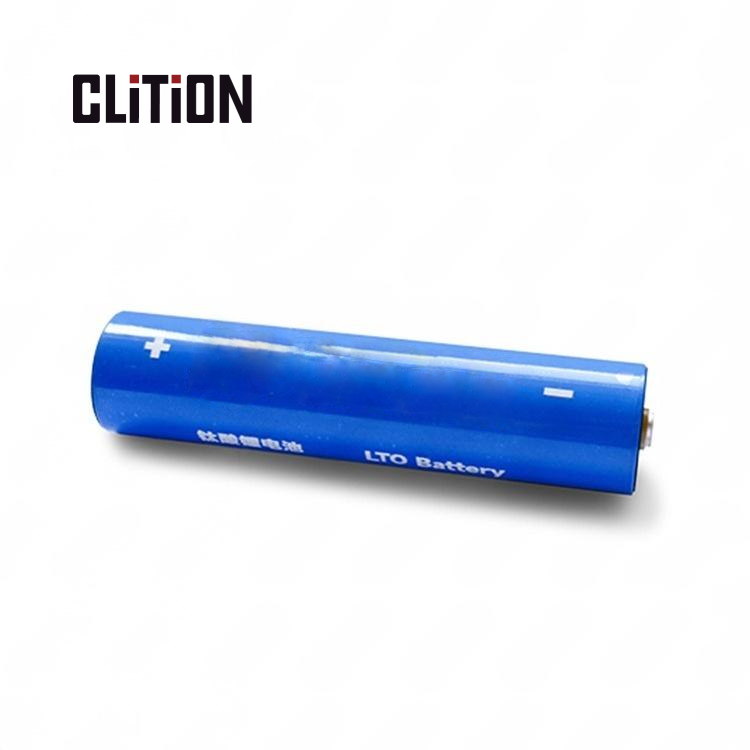

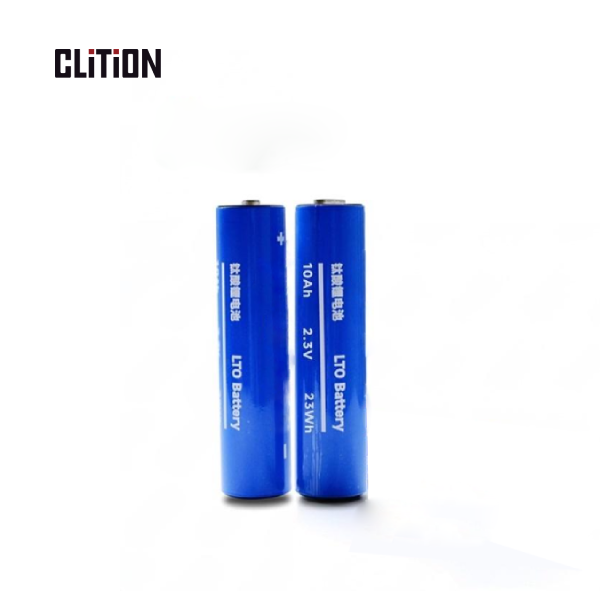

2.3V 10Ah lithium titanate battery 23Wh 33140 LTO battery

Product Parameter

Weight:270g±15g

Nominal capacity:10Ah

Nominal voltage:2.3V

Nominal Energy:23Wh

Energy Density:85.2Wh/kg

Resistance:≤1.5mΩ(AC, 1000Hz)

Charging cut-off voltage:2.9V

Discharging cut-off voltage:1.5V

Standard charging current:10A

Standard discharging current:10A

Max. Constant Charging Current:50A

Max. Constant Discharging Current:50A

Max. Charging Current:100A

Max. Discharging Current:100A

Temperature Range for Storage:

Less than one year: -10~25°C;

Less than three months: -30~45°℃

Transportation Voltage:≥2.4V
