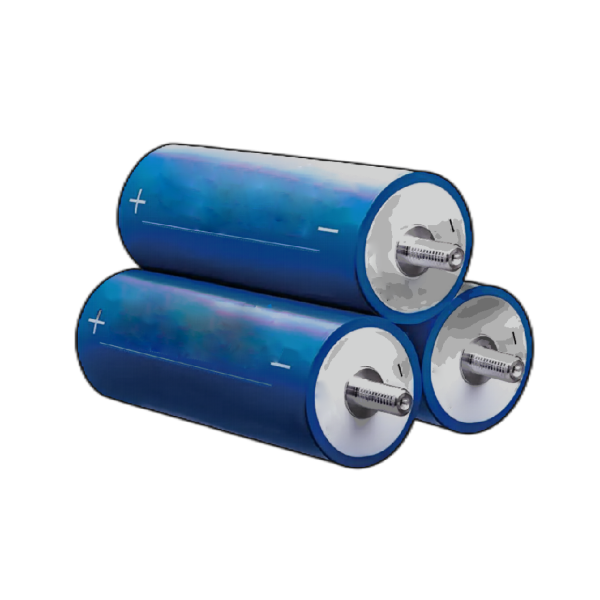

2.4V 20Ah 48Wh lithium titanate battery 15000 cycles LTO battery 60100 Cylindrical cell

Product Parameter

Weigt:≤650g±10g

Size:D 60.5±0.3mm / H 110.1±0.3mm

Nominal capacity:20Ah

Nominal voltage:2.4V

Nominal Energy:48Wh

Energy Density:73.8Wh/kg

Resistance:≤0.3mΩ(AC, 1000Hz)

Max. Constant Discharging Current:160A

Max. Charging Current:240A

Max. Discharging Current:400A

Normal temperature cycle life @80%:≥15000

Charging temperature:-50~65℃

Discharging temperature:-50~65℃

Low-temperature discharge efficiency：≥80%(-40℃); ≥85%(-20℃)
