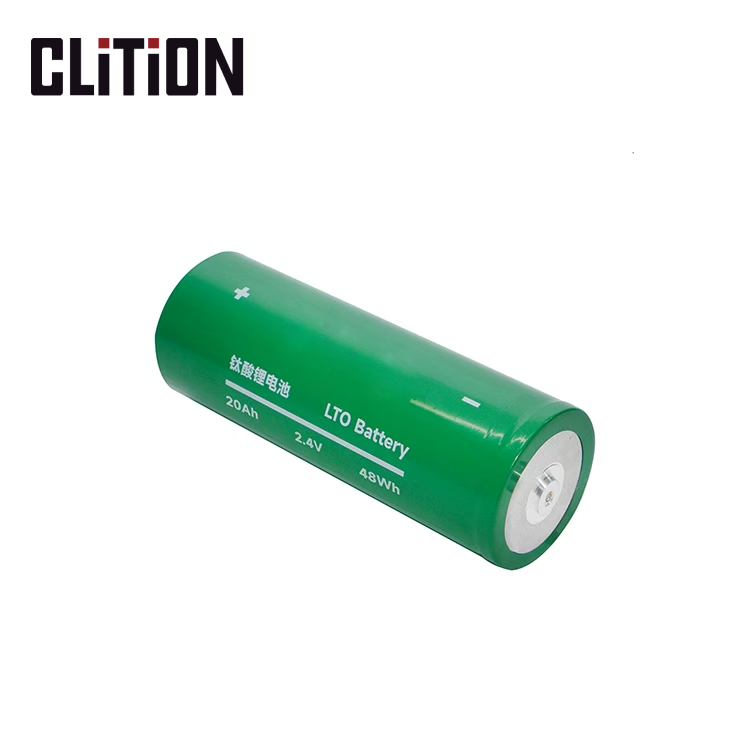

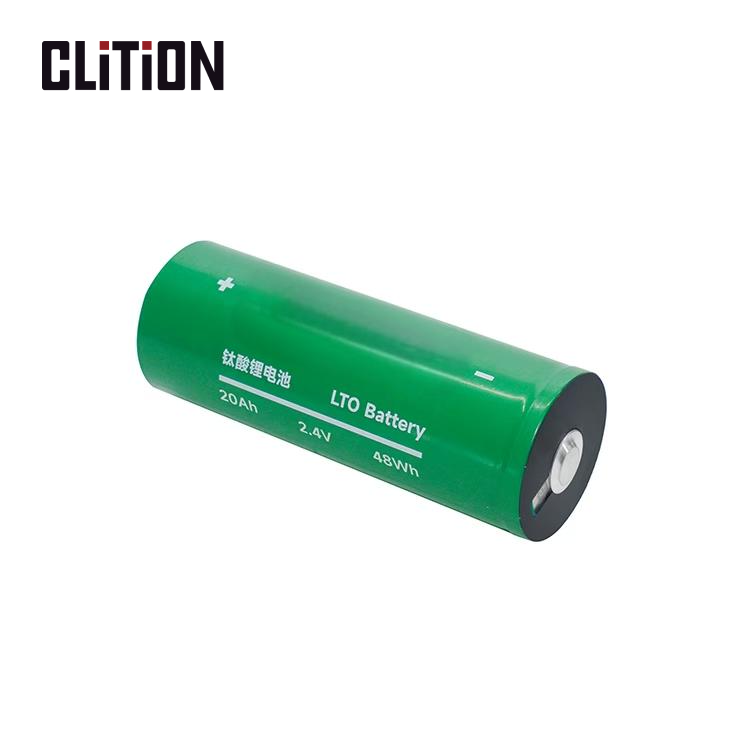

2.4V 20Ah 48Wh lithium titanate battery LTO battery 60100 Cylindrical cell

Product Parameter

Weigt:≤650g

Nominal capacity:20A

Nominal voltage:2.4V

Nominal Energy:48Wh

Energy Density:73.8Wh/kg

Resistance:≤0.3mΩ(AC, 1000Hz)

Charging cut-off voltage:2.8V

Discharging cut-off voltage:1.5V

Standard charging current:20A

Standard discharging current:20A

Max. Constant Charging Current:80A

Max. Constant Discharging Current:160A

Max. Charging Current:240A

Max. Discharging Current:400A

Temperature Range for storage:

less than one year:-10~25℃

less than three month:-35~45℃

Transportation Voltage:≥2.4V

Packaging method

Carton dimensions (W×L×H) : 380×380×27mm

Gross weight: 28kg

Each battery pack is in a separate anti-static or protective sleeve

Cells between foam or cardboard partitions to prevent movement and short circuits

Inner boxes for batch production of 25 cells (varies by order)

The outer packaging carton is made of high-strength double-layer corrugated cardboard
