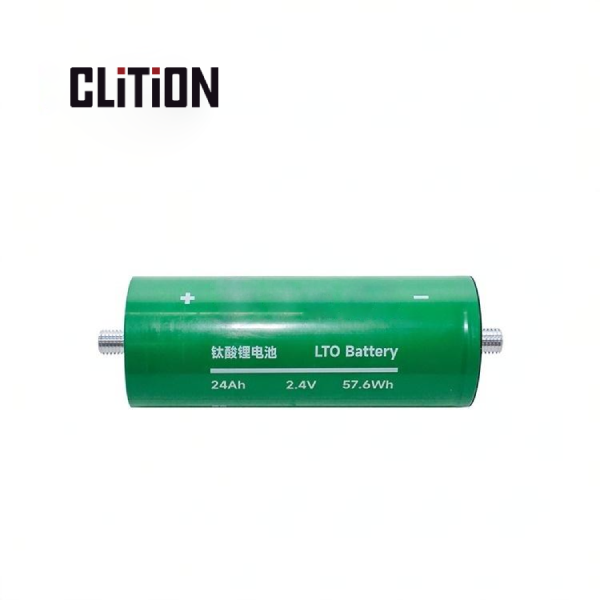

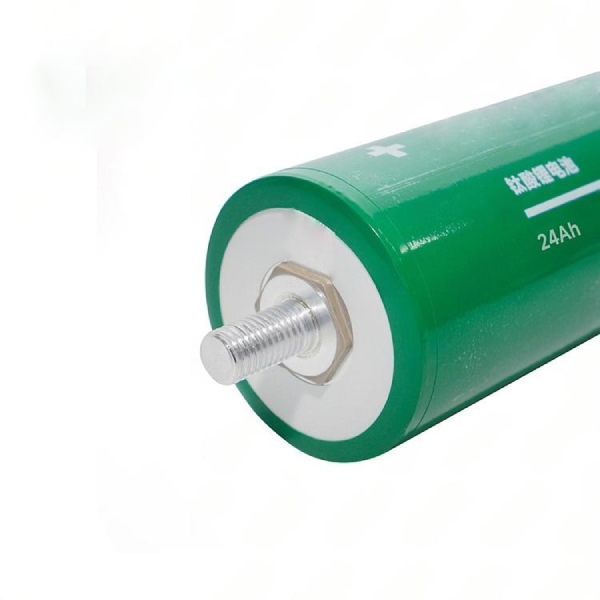

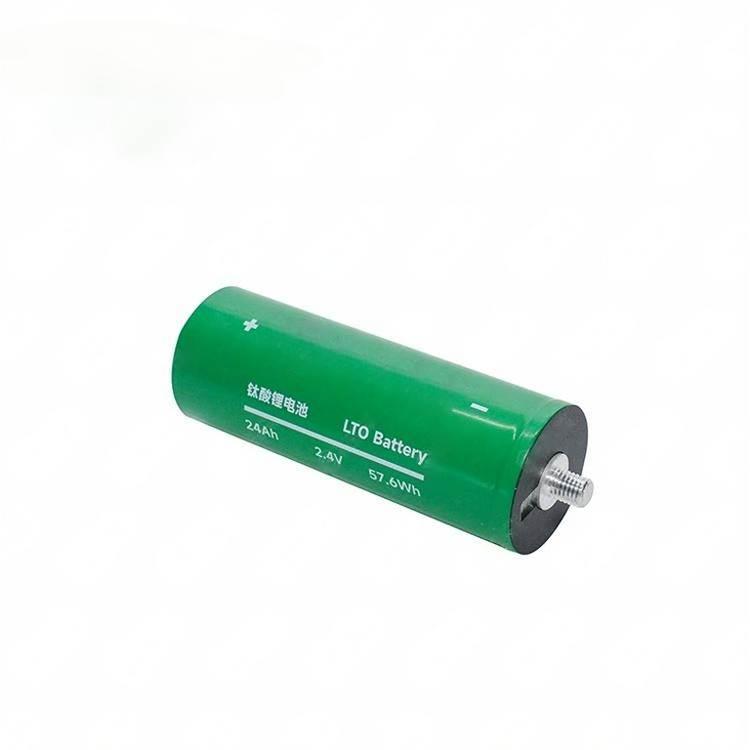

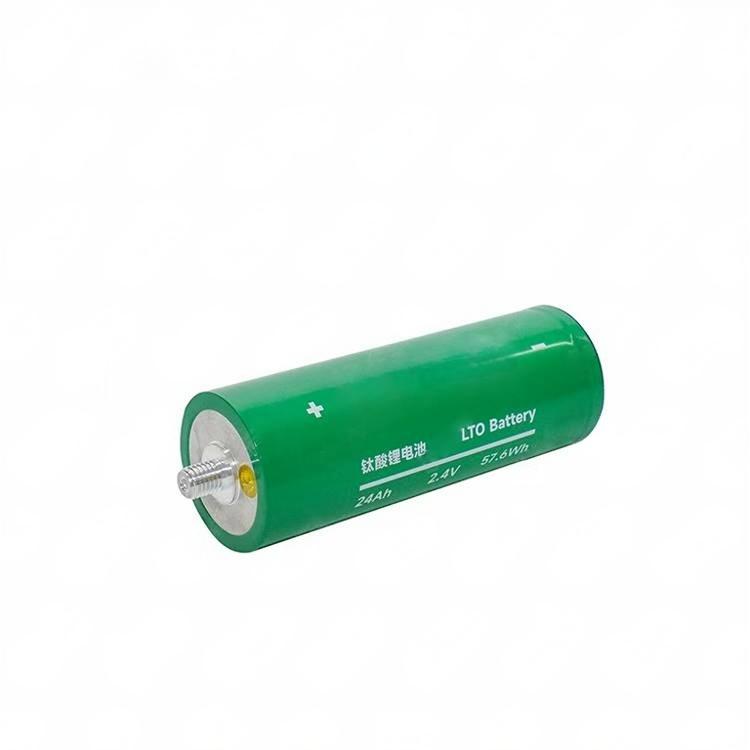

2.4V 24Ah lithium titanate battery 57.6Wh 60138 LTO battery

Product Parameter

Weigt:≤830g

Nominal capacity:24A

Nominal voltage:2.4V

Nominal Energy:57.6Wh

Energy Density:69.4Wh/kg

Resistance:≤0.45mΩ(AC, 1000Hz)

Charging cut-off voltage:2.8V

Discharging cut-off voltage:1.5V

Standard charging current:24A

Standard discharging current:24A

Max. Constant Charging Current:72A

Max. Constant Discharging Current:120A

Max. Charging Current:144A

Max. Discharging Current:240A

Temperature Range for storage:

less than one year:-10~25℃

less than three month:-35~45℃

Transportation Voltage:≥2.4V

Each battery pack is in a separate anti-static or protective sleeve

Cells between foam or cardboard partitions to prevent movement and short circuits

Inner boxes for batch production of 25 cells (varies by order)

The outer packaging carton is made of high-strength double-layer corrugated cardboard
