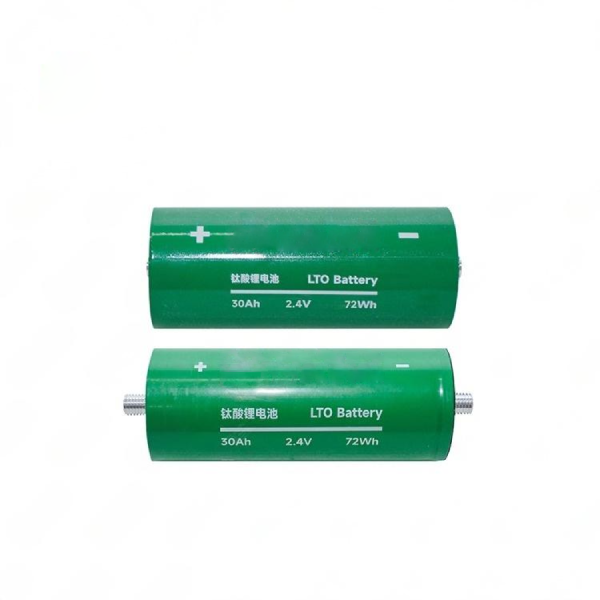

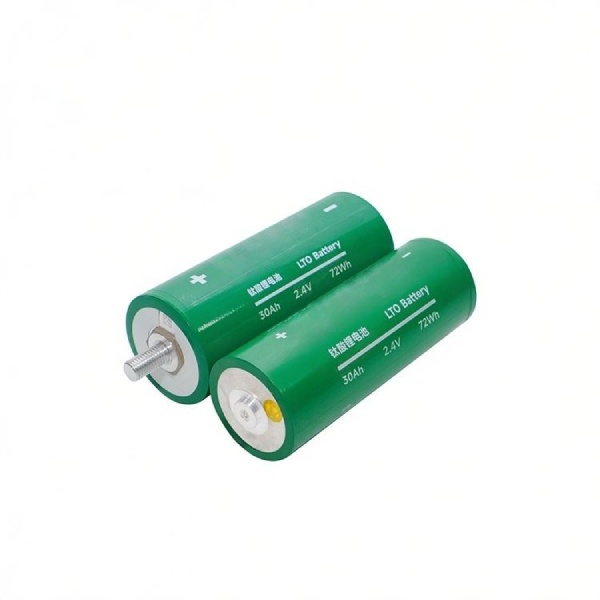

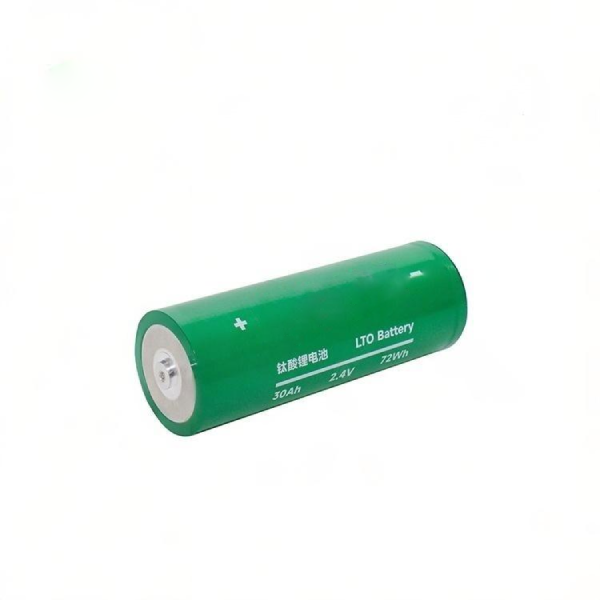

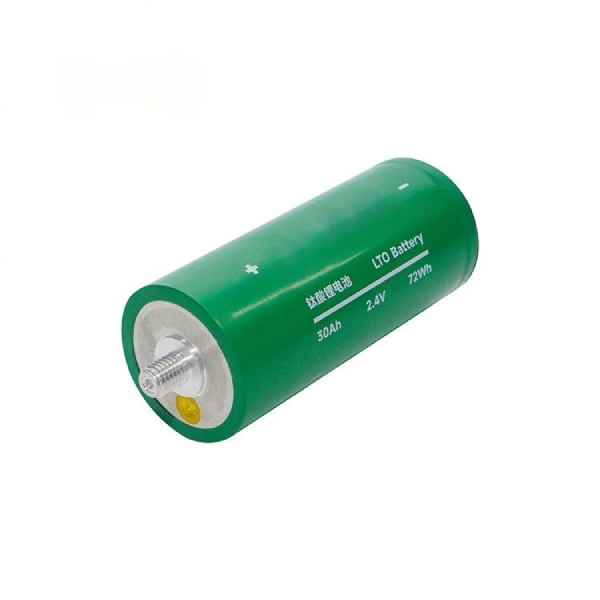

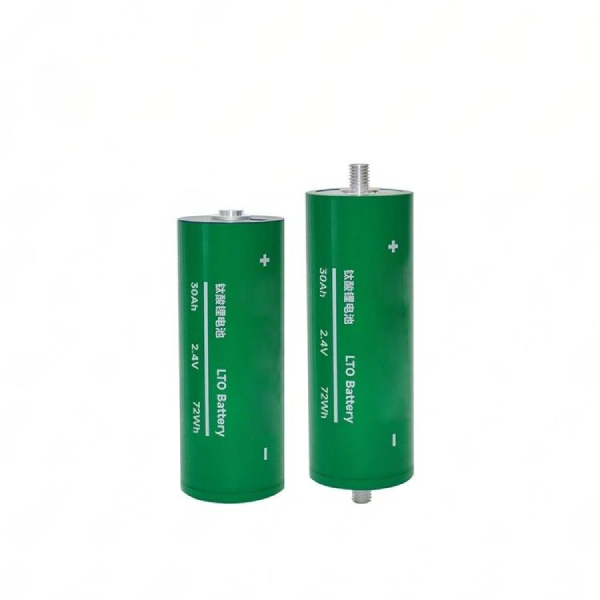

60138 литий-титанатный аккумулятор 2,4 В 30 А·ч LTO
| Technical Specifications | ||
| Item | 60138CSTA-2.4V 30Ah | 60138CWLA-2.4V 30Ah |
| Weight | ≤850g | ≤850g |
Nominal capacity | 30Ah | 30Ah |
Nominal voltage | 2.4V | 2.4V |
Nominal Energy | 72Wh | 72Wh |
Energy Densit | ≤0.35mQ(AC,1000Hz) | ≤0.5mQ(AC,1000Hz) |
Charging cut-off volta | 2.8V | 2.8V |
Discharging cut-off voltage | 1.5V | 1.5V |
Standard charging current | 30A | 30A |
Standard discharging current | 30A | 30A |
Max. Constant Charging Current | 120A | 120A |
Max. Constant Discharging Current | 240A | 240A |
Max. Charging Current | 360A | 360A |
Max. Discharging Current | 600A | 600A |
Temperature Range for Storage | Less than one year: -10~25°C; Less than three months: -30~45°C; | Less than one year: -10~25°C; Less than three months: -30~45°C; |
Transportation Voltage | 2.4V | 2.4V |
