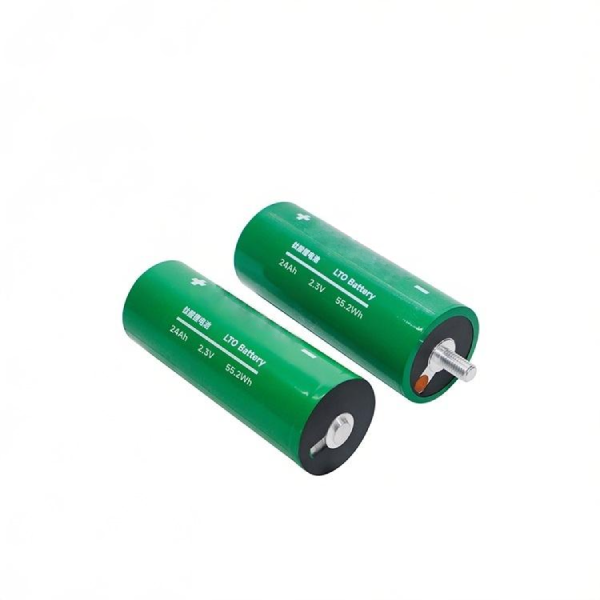

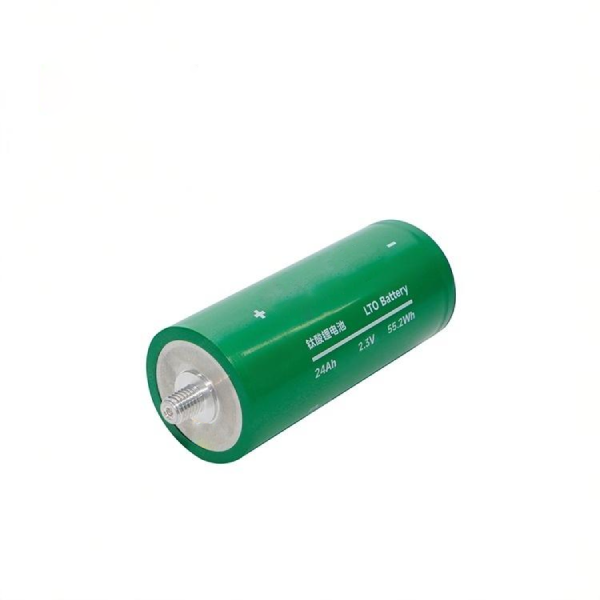

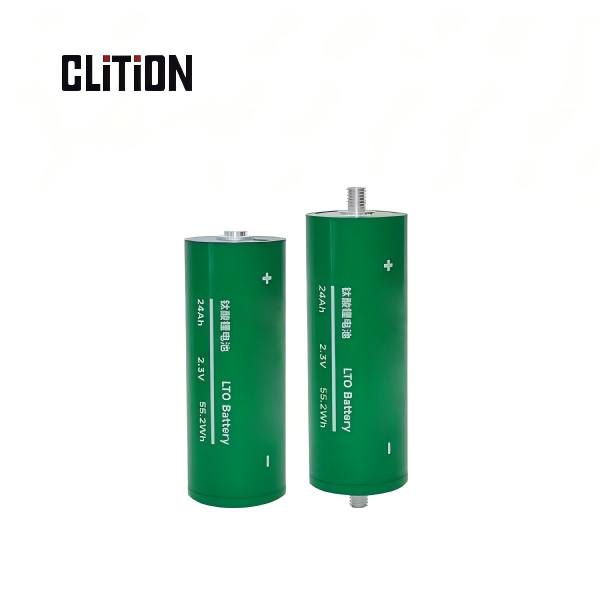

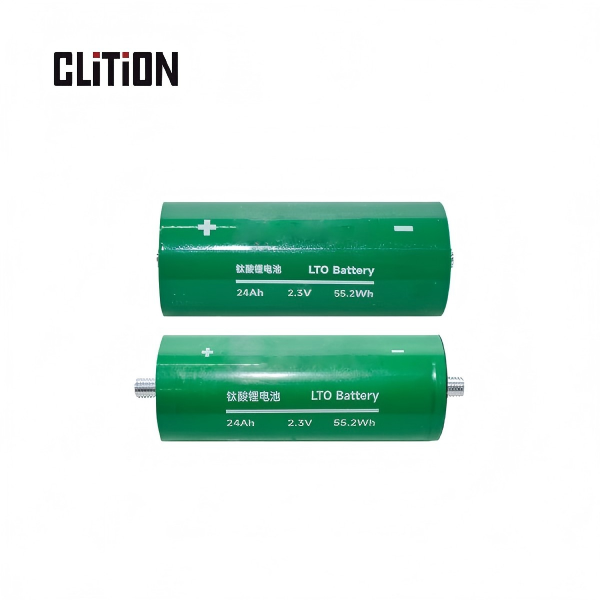

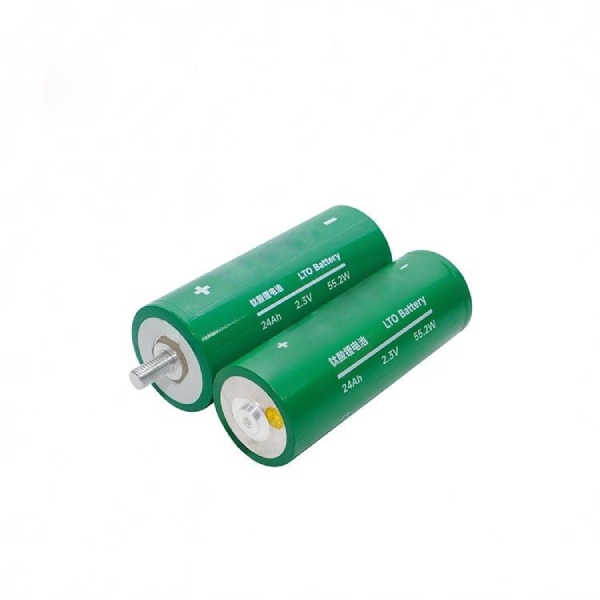

LTO battery 2.3V 24Ah 55.2Wh 60138 lithium titanate battery

Product Parameter

Weigt:≤850g

Nominal capacity:24A

Nominal voltage:2.3V

Nominal Energy:55.2Wh

Energy Density:65Wh/kg

Resistance:≤0.5mΩ(AC, 1000Hz)

Charging cut-off voltage:2.7V

Discharging cut-off voltage:1.5V

Standard charging current:24A

Standard discharging current:24A

Max. Constant Charging Current:192A

Max. Constant Discharging Current:192A

Max. Charging Current:192A

Max. Discharging Current:720A

Temperature Range for storage:

less than one year:-10~25℃

less than three month:-35~45℃

Transportation Voltage:≥2.2V

Each battery pack is in a separate anti-static or protective sleeve

Cells between foam or cardboard partitions to prevent movement and short circuits

Inner boxes for batch production of 25 cells (varies by order)

The outer packaging carton is made of high-strength double-layer corrugated cardboard
