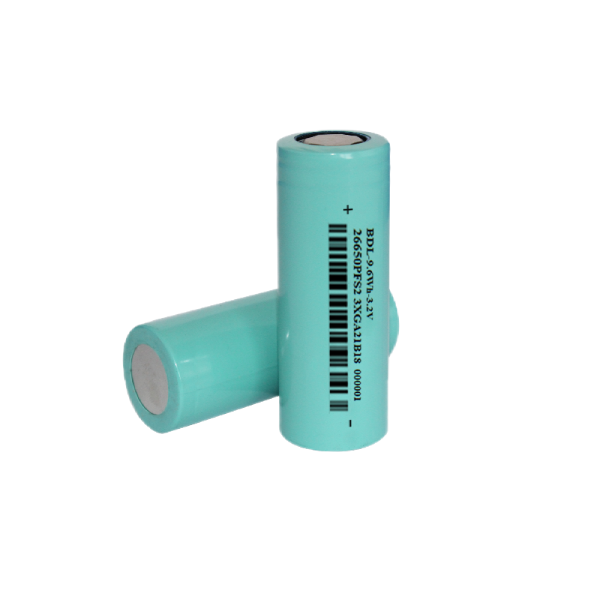

LiFePo4 26650 3.2V 3000mAh Lithium Iron Phosphate Cylindrical cell Low temperature

Product parameters

Model:26650PFS2

Typical capacity: 3000mAh

Minimum capacity: 2900mAh

Nominal voltage :3.2V

Cathode material: LFP

Ac internal resistance: ≤6mΩ

Cell weight: 84.0±3.0g

Energy Density:≥114Wh/kg

Charging cut-off voltage: 3.65V

Discharge cut-off voltage: 2.0V

Maximum continuous discharge : 15C

Maximum continuous charging: 5C

Fast continuous discharge:8C

Pluse Discharge:30C(10s)

Cycle: ≥3000 cycles

Charging temperature: -10~60℃

Discharge temperature: -40 ~ 70℃

Storage temperature: -20 ~ 45℃ (for 3 months)

-10~ 25℃ (6 months)

Shelf life: 1 year

Applications

Electric tools, UPS

Customized service

1. Labels and Brands

Custom logo printing

Self-owned brand packaging

Color and design customization

2. Technical indicators

Custom battery capacity options (e.g., 1200mWh, 1500mWh

Special voltage or discharge rate requirements

Pulse current

3.OEM&ODM module customization service

Application scenarios

Series-parallel scheme

Voltage and capacity

Certification requirements

Quality control

1.The warranty period of the battery cells from the date of shipment shall be determined in accordance with the contract. However, within this period, if the quality issue of the battery cells is not due to the manufacturing process of Shenzhen Clition Technology Co., Ltd., but rather caused by the customer's misuse, Shenzhen Clition Technology Co., Ltd. does not promise to replace them for free.

2.Shenzhen Clition Technology Co., Ltd. shall not be held responsible for any problems arising from violations of safety regulations.

3.Shenzhen Clition Technology Co., Ltd. assumes no responsibility for any issues arising from its use in conjunction with circuits, battery packs, or chargers.

4. Defective battery cells produced by the customer during the battery cell assembly process after shipment are not covered by the quality guarantee of Shenzhen Clition Technology Co., Ltd.

Packaging and transportation

Method One: Each small box contains 80 battery cells, and each large box contains two small boxes. The large boxes are placed on the pallet.

Method Two: Each small box contains 80 battery cells, and the small boxes are placed on the pallet.

Shipment: Individual cells are shipped at 20-30% of their charging capacity or as per customer requirements. The remaining capacity of the cells before charging after shipment depends on the storage time and conditions.

Shipping Methods:

1. Express: DHL, FedEx, UPS, TNT (small orders or samples)

2. Air freight: For medium-volume, time-sensitive orders

3. Sea freight: For large-volume shipments
