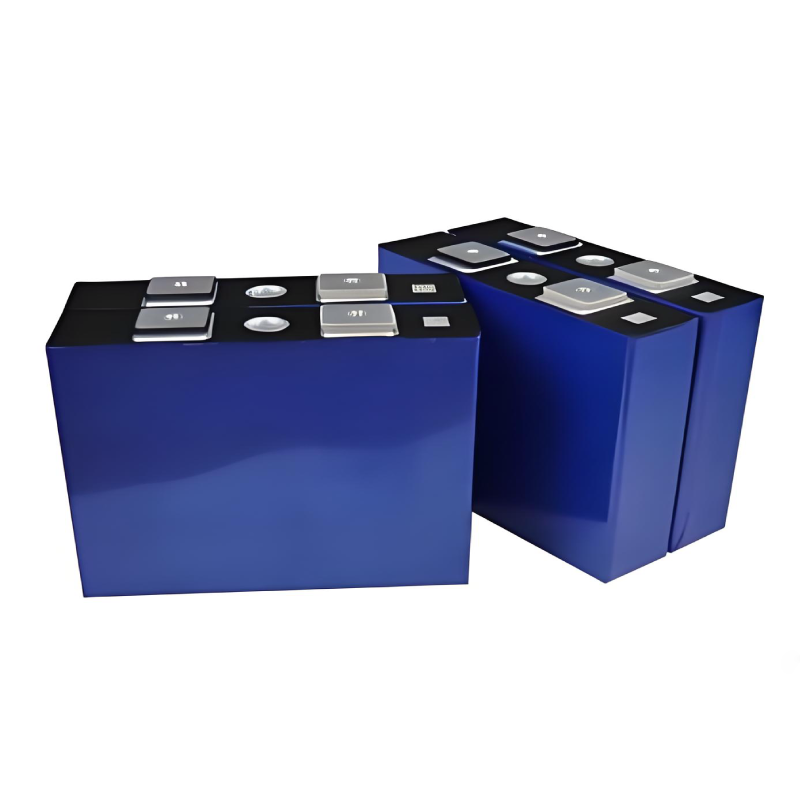

3.2V 100Ah LiFePo4 низкотемпературная батарея
Product parameters | |||
| Rated capacity | 100Ah | Typical capacity | 101Ah |
| Nominal voltage | 3.2V | Nominal energy | 320Wh |
| Charge Ending voltage | 3.65V | Discharge ending voltage | 2.5V (＞0℃), 2.0V (≤0℃) |
| Internal resistanc | ≤0.5mΩ (AC Impedance, 1000 Hz) | Cycle Life | ≥4000 cycles 80% EOL |
| Standard charge current | 25±2℃, 0.5C | Standard discharge current | 25±2℃, 0.5C |
| Charge temperature range | -10℃～+55℃ | Discharge temperature range | -40～+60℃ |
| Storage temperature (Recommended) | -10～+35℃ | Storage temperature (Short-term allowance) | -30～+55℃ |
| Size | 40±0.5*220±0.5*112±0.5mm | Weight | 2.08±0.1kg |
Max. charge limited current at room temperature (Non-cyclic) | 150A (Continuous) / 300A (50%SOC, 10s) | Max. discharge limited current at room temperature (Non-cyclic) | 200A(Continuous) / 300A (50%SOC, 10s) |
